| Quantity: | |
|---|---|
0.73M/1.09M/1.4M/1.57M/2.07M/2.57M/3.07
yiande
73084000
MATERIAL We only use the highest quality steel in our products. Our steel is certified and tested, it conforms to or exceeds industry standards no matter the location or climate.
FINISH Where applicable, our products are finished and protected by hotdipped zinc galvanizing. This method of finishing maximizes the utilization and extends the product life.
For additional information on Ringlock system components please contact us.

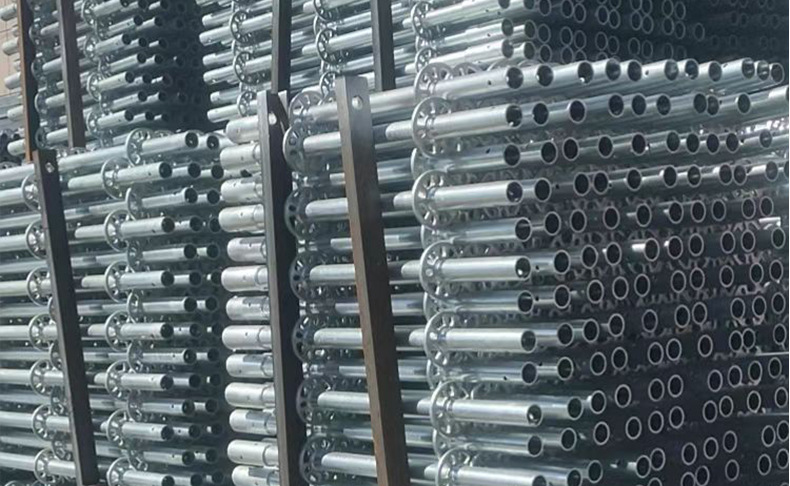

Standards are the vertical members of Ringlock scaffolding. The standard provides the vertical support for scaffolding. The spigot is permanently fixed in place.
| ITEM CODE | LENGTH(M) |
| YPSD050 | 0.5 |
| YPSD100 | 1.0 |
| YPSD150 | 1.5 |
| YPSD200 | 2.0 |
| YPSD250 | 2.5 |
| YPSD300 | 3.0 |
| YPSD400 | 4.0 |

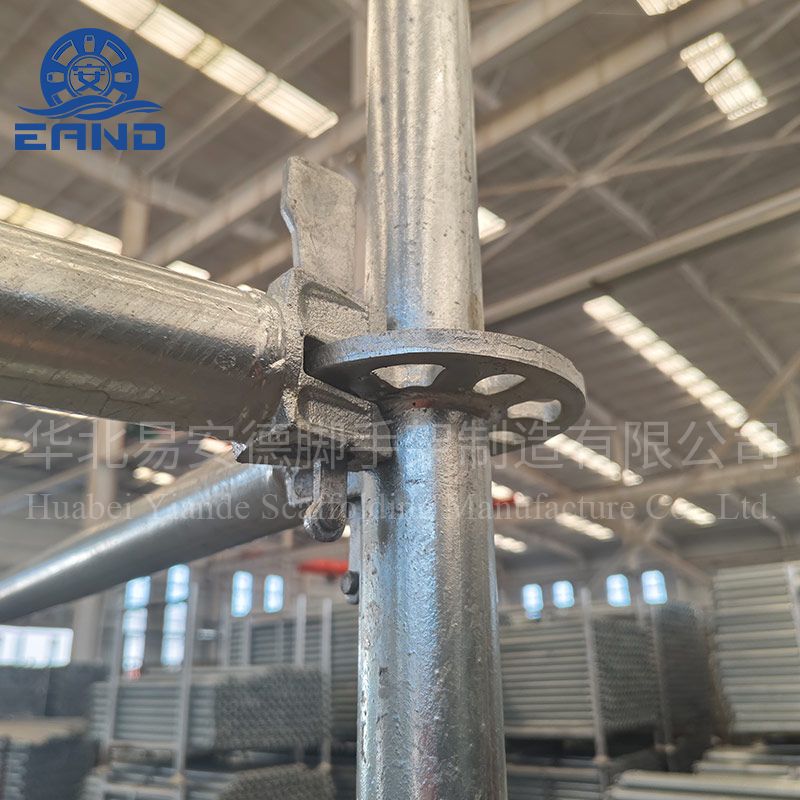

Ledgers are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guardrails.
Leger & U Transom
| O Ledger | U Tranom | ||||
| ITEM CODE | LENGTH(M) | ITEM CODE | LENGTH(M) | ITEM CODE | LENGTH(M) |
| YPLO073 | 0.73 | YPPT030 | 0.6 | YPLU073 | 0.73 |
| YPLO109 | 1.09 | YPPT060 | 0.6 | YPLU109 | 1.09 |
| YPLO140 | 1.4 | YPPT090 | 0.9 | YPLU140 | 1.4 |
| YPLO157 | 1.57 | YPPT120 | 1.2 | YPLU157 | 1.57 |
| YPLO207 | 2.07 | YPPT150 | 1.5 | YPLU207 | 2.07 |
| YPLO257 | 2.57 | YPPT180 | 1.8 | YPLU257 | 2.57 |
| YPLO307 | 3.07 | YPPT200 | 2 | YPLU307 | 3.07 |
| Other size is available | |||||
Diagonal Bay Braces are used for the lateral bracing of Ringlock scaffolds. They can also be used as compression and tension members for cantilevers/spurs where they transmit loads back into the main scaffold structure. Diagonal/ Bay Braces are also used for handrails in the Ringlock Steel Stair System.
| LXH(M) | LXH(M) | LXH(M) | LXH(M) |
| 0.73X2.0 | 0.73X1.5 | 0.3X2.0 | 0.3X1.5 |
| 1.09X2.0 | 1.09X1.5 | 0.6X2.0 | 0.6X1.5 |
| 1.40X2.0 | 1.40X1.5 | 0.9X2.0 | 0.9X1.5 |
| 1.57X2.0 | 1.57X1.5 | 1.2X2.0 | 1.2X1.5 |
| 2.07X2.0 | 2.07X1.5 | 1.5X2.0 | 1.5X1.5 |
| 2.57X2.0 | 2.57X1.5 | 1.8X2.0 | 1.8X1.5 |
| 3.07X2.0 | 3.07X1.5 | 2.0X2.0 | 2.0X1.5 |
| Other size is available | |||
Steel Planks are laid side by side to form the working platform. They span the length of the bay and hook onto the suppor ting Ledger/Transom. There is an antilock system to prevent uplift in adverse conditions.
| Option A-Heavy Duty Plank | Option B-Normal Plank | ||
| WXL(M) | WXL(M) | Width(MM) | Length (MM) |
| "O" hook | "U" hook | 240/250/300/320/420/450/480/500 | 600 |
| 900 | |||
| 0.32X0.73 | 0.32X0.73 | 914 | |
| 0.32X1.09 | 0.32X1.09 | 1200 | |
| 0.32X1.40 | 0.32X1.40 | 1219 | |
| 0.32X1.57 | 0.32X1.57 | 1500 | |
| 0.32X2.07 | 0.32X2.07 | 1800 | |
| 0.32X2.57 | 0.32X2.57 | 1829 | |
| 0.32X3.07 | 0.32X3.07 | 2000 | |
| Other Size is Available | |||
