The construction industry often struggles with inconsistent terminology regarding temporary access structures. You will frequently hear terms like modular scaffolding, prefabricated setups, and system scaffolding used interchangeably on job sites. Selecting the wrong scaffolding architecture or misunderstanding the specific load and geometric capabilities of pre-engineered systems directly leads to inflated labor costs, compromised site safety, and severe schedule overruns. When site engineers and procurement managers lack a clear understanding of these systems, they risk deploying inadequate materials for complex structural demands. This guide clarifies system scaffold terminology and dissects its core engineering components. We provide a rigorous evaluation framework for procurement managers and site engineers. By understanding the mechanics, load capacities, and operational trade-offs, you can make informed decisions when selecting the right scaffolding architecture for your next major project.
Terminology Clarification: A system scaffold is universally known in the industry as "modular scaffolding" or a "scaffold system," characterized by pre-engineered, standardized components that lock together without traditional loose fittings.
Labor vs. Material Trade-off: While initial procurement or rental costs for system scaffolding are higher than traditional tube and clamp or frame scaffolding, the standardized connections drastically reduce erection and dismantling labor hours.
Structural Superiority: Modern modular setups, particularly the Ringlock Scaffolding System, offer superior load-bearing capacities and seismic stability due to fixed-angle node connections.
Decision Criterion: The choice to adopt a system scaffold should be dictated by project geometry, required load classes, and the frequency of scaffold modifications required during the build lifecycle.

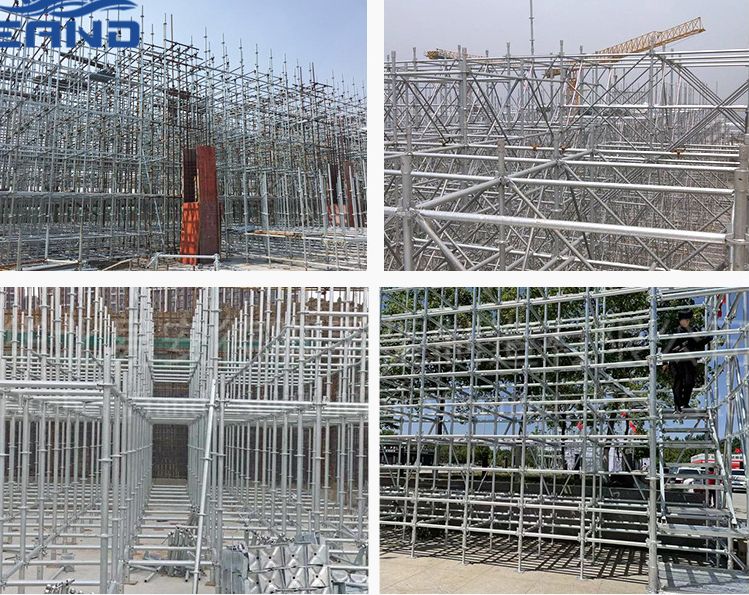

In technical engineering circles, a system scaffold is primarily referred to as "modular scaffolding" or a "scaffold system." These terms describe a broad engineering classification known as modularised temporary access structures. Unlike older methods that rely on raw pipes and separate clamps, a modular system utilizes pre-engineered components manufactured to precise dimensions. These components interlock using built-in connection points, creating a rigid, standardized framework that requires minimal manual measuring during assembly.
The industry also relies heavily on proprietary eponyms. Specific connection mechanisms developed by various manufacturers have become synonymous with the category itself. You will often hear a system scaffold called by brand or style names. While the locking mechanisms differ, they all fall under the broader modular scaffolding umbrella. Common variations include:
Ringlock: Utilizes a central rosette with wedge pins for multi-directional connections.
Cuplock: Relies on a node point with top and bottom cups that lock horizontal members in place via friction and hammer strikes.
Kwikstage: Features V-pressings on the standards and captive wedges on the horizontals, popular in specific regional markets.
To fully grasp what makes a system scaffold unique, you must contrast it with traditional methods. Traditional "tube and clamp" (or tube and fitting) scaffolding requires workers to manually measure, level, and secure every joint using loose steel fittings and couplers. This process is highly adaptable but incredibly labor-intensive and prone to human error. Conversely, traditional "frame scaffolding" uses rigid, pre-fabricated H-frames. While fast to erect on flat facades, frame scaffolding lacks flexibility. System scaffolding bridges this gap. It eliminates loose steel fittings entirely and replaces rigid H-frames with highly adaptable, multi-directional modular node points, allowing for complex configurations without sacrificing erection speed.
The foundation of any modular setup relies on vertical standards. These vertical tubes, manufactured typically from 48.3mm outer diameter high-yield steel with a 3.2mm wall thickness, bear the primary responsibility for transferring vertical loads safely to the ground. Standards feature connection nodes spaced at regular intervals—usually every 500mm—dictating the lift heights of the structure and providing consistent tie-in points.
Proper load transfer begins at the ground level. Base jacks and starter collars integrate directly with the vertical standards. The base jack provides essential leveling capabilities on uneven terrain, utilizing a threaded stem to adjust height precisely. The starter collar sits over the base jack, distributing the structural weight and providing the first node connection point for horizontal members. This ensures the base remains perfectly square and plumb before the structure rises, which is a non-negotiable requirement for heavy-duty load bearing.
Horizontal members are critical for defining the spatial dimensions of the scaffold. The Ringlock Ledger serves multiple structural functions. It dictates the bay length, acts as a secure guardrail for workers, and provides essential lateral support to prevent the vertical standards from buckling under heavy loads. Ledgers are manufactured in specific lengths, ranging from 0.73m to 3.05m, allowing engineers to design bays that perfectly match the required load class and access footprint.
The mechanical action of the ledger connection is a defining feature of modern modular systems. The ledger features a cast end with a captive wedge pin. Workers slide this cast end over the rosette on the vertical standard and drive the wedge pin home with a hammer. This physical locking mechanism eliminates the margin of human error associated with torqueing traditional couplers. You get a secure, high-capacity joint every single time without relying on a worker's physical strength to tighten a bolt to a specific torque setting.
Transoms run perpendicular to the ledgers and serve a highly specific purpose: they seat the scaffolding boards or steel decks securely. By locking into the same node points as the ledgers, transoms ensure the working platform remains stable and flush. They feature specific profiles, such as U-profiles or O-profiles, designed to capture the hooks of the steel decks, eliminating trip hazards and supporting heavy material loads safely.
To achieve true three-dimensional rigidity, the system relies on diagonal braces. These braces connect diagonally across the face of the scaffold bays, utilizing pivoting wedge heads to accommodate the geometric angle. They play a critical role in preventing structural sway, resisting wind loads, and maintaining the exact squareness of the modular bays. Without proper diagonal bracing, even the most robust vertical and horizontal components would be susceptible to lateral collapse under dynamic loads.
The engineering behind the Ringlock Scaffolding System centers entirely on its central rosette. Welded to the vertical standard at 500mm intervals, this rosette allows up to eight connections per node. It features four small holes for fixed right-angle connections, which are perfect for standard ledgers and transoms. It also features four larger slots that accommodate variable angles, providing immense flexibility for complex geometries.
This specific geometry facilitates complex access requirements. When you need to scaffold a circular tank, a curved facade, or an irregular industrial boiler, the variable angle slots allow the ledgers to pivot. You can follow the exact contour of the structure without ever needing to resort to secondary, labor-intensive tube-and-clamp tie-ins. This keeps the entire structure within the certified load parameters of the modular system.
When evaluating weight distribution efficiency, Ringlock consistently outperforms older modular designs. Systems relying on friction-based jointing, such as traditional Cuplock, can experience slight slippage under extreme dynamic loads or heavy vibration. The wedge-driven rosette connection of Ringlock creates a positive, mechanical lock that transfers loads seamlessly through the node, ensuring maximum rigidity.
This rigidity makes it the preferred choice for heavy industrial and nuclear applications. High-quality Ringlock systems meet rigorous industry-standard load classes and often pass stringent seismic qualification testing. This ensures the temporary structure remains viable even under extreme environmental stress, heavy masonry loads, or the dynamic forces introduced by material hoists and crane landings.
Despite its strength, a system scaffold must adhere to strict engineering constraints, particularly in free-standing or un-tied configurations. Site engineers must calculate overturning moments carefully when the scaffold cannot be physically anchored to an adjacent building or permanent structure.
Standard industrial guidelines dictate strict limits for unsupported runs. Generally, you cannot exceed a height-to-base ratio of 4:1 indoors or 3:1 outdoors without introducing secondary support mechanisms. To prevent overturning, crews must install physical tiebacks, guy wires, or engineered outriggers. Ignoring these geometric limits compromises the entire structural integrity of the build and violates basic safety regulations.
The primary operational advantage of modular scaffolding is speed. Pre-engineered nodes eliminate the tedious process of manually measuring, leveling, and squaring every single joint. Workers simply slot the components together and drive the wedges tight. This drastically reduces erection and dismantling times compared to tube and clamp setups, often cutting labor hours by up to 50% on straightforward industrial builds.
The outcome is highly predictable project timelines. Faster erection means follow-on trades can access the work face sooner, leading to quicker project phase transitions and significantly reduced labor costs over the project lifecycle. When scaffolders spend less time measuring and tightening couplers, they spend more time building volume.
While highly efficient, system scaffolding does have limitations in highly restricted, non-standardized spaces. In environments with dense pipework, cable trays, or incredibly tight clearances, the fixed lengths of modular components can be a hindrance. In these specific scenarios, the infinite adjustability of traditional tube and clamp might still hold a tactical advantage, allowing scaffolders to weave tubes through complex obstructions.
However, for large, uniform industrial builds, system scaffolds scale optimally. Refineries, shipyards, and commercial infrastructure projects benefit immensely from the standardized components. You can deploy massive volumes of scaffolding rapidly, knowing every bay will align perfectly with the next, maintaining consistent deck heights and load capacities across thousands of square meters.
Safety is engineered directly into the components. The wedge locks provide instant visual confirmation of a secure joint. A site supervisor can walk the scaffold and immediately see if a wedge has not been driven home, a level of visual quality control impossible with threaded couplers that require physical torque testing.
Furthermore, pre-manufactured modular components carry standardized load ratings. This simplifies compliance with OSHA, ANSI, and EN standards. Engineers do not need to calculate the slip resistance of individual fittings; they rely on the certified load data provided by the manufacturer for the entire system, streamlining the sign-off process.
Comparison of Scaffolding Architectures | |||
Feature | System Scaffold (Modular) | Tube and Clamp | Frame Scaffold |
|---|---|---|---|
Erection Speed | High | Low | Very High (on flat surfaces) |
Adaptability | High (Multi-directional) | Very High (Infinite) | Low (Rigid frames) |
Labor Intensity | Low | Very High | Low |
Load Capacity | Heavy Duty | Medium to Heavy Duty | Light to Medium Duty |
Connection Type | Pre-engineered nodes (Wedges/Cups) | Manual steel couplers | Stacking pins / Cross braces |
Procuring a modular scaffolding system requires a high initial capital expenditure (CapEx). The precision engineering, cast rosettes, and captive wedge mechanisms cost significantly more to manufacture than raw steel tubes and basic forged clamps. However, this initial investment must be weighed against long-term operational expenditure (OpEx) savings realized in the field.
The standardized nature of the system drastically reduces labor hours required for every single build and dismantle cycle. Furthermore, training times are reduced, and the predictability of the system minimizes costly schedule overruns. Over multiple projects, the OpEx savings consistently outpace the initial CapEx burden, making it a highly efficient choice for contractors managing large volumes of access work.
High-tier system scaffolds are typically manufactured using hot-dipped galvanized steel. This treatment provides a robust barrier against rust, chemical exposure, and general environmental degradation. When evaluating the return on investment, you must consider the lifespan of these galvanized components compared to cheaper alternatives.
Traditional black steel tubes suffer from rapid corrosion rates, especially in coastal or heavy industrial environments like chemical plants. The galvanized finish on modular components ensures they remain in service for decades, maintaining their structural integrity and load ratings long after traditional tubes would require replacement or extensive maintenance.
Managing a modular system requires a different logistical approach. You are storing, transporting, and tracking distinct, specialized parts—ledgers, standards, transoms, and braces of varying lengths. This requires organized stillages, precise inventory tracking software, and disciplined yard management to ensure crews have the exact mix of components needed for a specific design.
While uniform raw tubes are easier to stack in bulk, they are inefficient to deploy. Bulky frame scaffolds consume massive amounts of dead space on trucks and in yards. System scaffold components pack down densely into specialized racks, optimizing transport logistics, reducing freight costs, and minimizing the footprint required in your storage yard.
A significant risk during adoption is assuming that ease of assembly negates the need for training. While system scaffolds snap together logically, crews must be specifically trained on the proprietary locking mechanisms. They must know how to seat wedges correctly, understand bracing patterns, and recognize the structural limits of the system to prevent overloading.
To mitigate this risk, procurement managers must source systems from manufacturers that provide comprehensive technical manuals. Implementing certified training programs and utilizing on-site engineering support during the initial deployment ensures the crew builds safely and efficiently, maximizing the speed advantages of the system.
One of the most critical structural dangers on a job site is mixing components from different manufacturers. Even if two brands appear to use the same Ringlock-compatible rosette, microscopic differences in casting tolerances, steel grades, and wedge angles can lead to catastrophic joint failure under load.
Mitigating this risk requires establishing strict procurement guidelines. You must single-source components for a specific project. If mixing systems is absolutely unavoidable due to inventory shortages, you must require certified structural engineering approval to verify that the mixed components can safely interact under the required load conditions.
Transitioning to a system scaffold architecture requires careful planning but yields significant operational advantages. To maximize your investment and ensure site safety, follow these actionable steps:
Audit your upcoming project geometries to determine if the multi-directional capabilities of a modular system will eliminate traditional tube-and-clamp bottlenecks.
Establish a single-source procurement policy to prevent the dangerous mixing of incompatible proprietary components on your job sites.
Implement mandatory, manufacturer-specific training for all erection crews to ensure proprietary locking mechanisms are engaged correctly.
Transition your inventory management to track specific component lengths and types, utilizing stillages to optimize transport and yard storage.
A: System scaffold uses pre-engineered components with fixed connection nodes that lock together quickly without loose parts. Tube and clamp relies on plain steel pipes connected manually by threaded steel couplers, requiring more time and labor to measure and level.
A: No, you should never mix components from different manufacturers. Even if they look identical, slight variations in manufacturing tolerances, steel grades, and wedge dimensions can compromise the load capacity and lead to joint failure.
A: It is named after its central connection point. The vertical standards feature a circular metal ring, or rosette, welded at regular intervals. Horizontal ledgers and braces lock into this ring using a captive wedge pin.
A: Yes. High-quality modular systems are manufactured from high-grade galvanized steel and feature mechanical locking joints that prevent slipping. They are rigorously tested to meet heavy-duty load classes suitable for refineries and power plants.
A: Free-standing height limits depend on the base dimensions and environmental factors. Standard engineering rules dictate that unsupported runs should not exceed a 4:1 height-to-base ratio indoors without physical tiebacks or outriggers to prevent overturning.
A: Yes. While easier to assemble than traditional methods, workers must be trained on the specific proprietary locking mechanisms, bracing requirements, and load limits of the exact system they are erecting.
