Scaffold tipping and structural failure present severe liability, property damage, and fatality risks on residential job sites. Contractors and advanced DIYers constantly face the challenge of balancing site accessibility with strict occupational safety compliance. Navigating uneven residential terrain, avoiding damage to the home's facade, and meeting strict height-to-base ratio regulations require precise planning and execution. A minor miscalculation in load distribution or anchoring can lead to catastrophic collapse, endangering workers and bystanders while causing extensive damage to the property. To safely execute exterior renovations, you must establish a reliable connection between the temporary structure and the permanent building. This requires a thorough understanding of dynamic loads, facade integrity, and proper hardware selection. The following technical framework evaluates the necessary anchoring methods, structural components, and system types required to properly secure scaffolding to a residential structure, ensuring stability from the ground up.
Compliance Dictates Methodology: Scaffolding must be tied to a structure once its height exceeds a specific multiple of its minimum base dimension (typically 3:1 or 4:1, depending on local occupational safety regulations).
Component Quality is Non-Negotiable: The stability of the entire structure relies on the weakest link; utilizing certified base plates, outriggers, and a High-Strength Scaffold Coupler is critical for load distribution.
System Selection Impacts Anchoring: Modular systems like the Ringlock Scaffolding System offer distinct advantages in load-bearing capacity and adaptability over traditional tube-and-clamp or basic frame scaffolds.
Tie-In Strategy Varies by Facade: Selecting between anchor ties, through ties, and reveal ties depends entirely on the structural integrity of the house's exterior (e.g., solid masonry vs. timber frame vs. brick veneer) and the specific renovation task at hand.
Before making any wall attachments, the scaffold system must meet baseline stability requirements. A stable foundation dictates how well the structure will handle vertical loads from workers and materials, as well as lateral loads from wind and movement. You cannot build a safe elevated platform on a compromised base. The ground conditions, the footprint of the equipment, and the environmental factors all play a direct role in the physical physics of the setup.
The fundamental rule of scaffold stability is the height-to-base ratio, typically mandated at 3:1 or 4:1 depending on local occupational safety regulations. This means the maximum freestanding height of the scaffold cannot exceed three or four times its narrowest base dimension. To calculate the maximum freestanding height, measure the shortest side of the scaffold base and multiply it by the allowed ratio. Once the structure exceeds this height, it must be physically tied to the building.
Contractors must decide whether to widen the base using outriggers or initiate wall tie-ins. Outriggers extend the footprint, allowing for a taller freestanding structure. This is often necessary during early erection stages or when tying into the lower levels of a facade is impossible. However, outriggers require clear, level ground space, which is often limited in residential settings. If you are working in a tight alleyway between two homes, outriggers might not fit, forcing you to tie into the structure much lower to the ground.
Narrowest Base Dimension | Max Freestanding Height (3:1 Rule) | Max Freestanding Height (4:1 Rule) | Action Required Exceeding Max Height |
|---|---|---|---|
3 feet | 9 feet | 12 feet | Install wall ties or add outriggers |
5 feet | 15 feet | 20 feet | Install wall ties or add outriggers |
7 feet (with outriggers) | 21 feet | 28 feet | Install wall ties |
Residential environments introduce unique dynamic loads. Wind funneling between closely built houses dramatically increases lateral pressure on the scaffold netting and frames. Uneven ground, soil subsidence after heavy rain, and hidden voids near foundation walls alter how weight transfers through the base plates. When wind hits a scaffold covered in debris netting, it acts like a sail, multiplying the lateral force exponentially. This force attempts to overturn the structure, making the tie-ins the only thing preventing a collapse.
Critical overhead hazards must be identified and mitigated before assembly begins. Overhead power lines require strict minimum clearance distances. Tree canopy encroachment and low-hanging roof eaves dictate the placement of vertical standards and working platforms. To prevent baseline shifting on uneven or soft terrain, workers must utilize mudsills under base plates to distribute the point load over a larger surface area. If using rolling towers, locking casters are mandatory to prevent unintended movement during operation.
Survey the ground for soft spots, recent excavations, or underground utilities that could collapse under the point load of a scaffold leg.
Measure the distance to all overhead power lines to ensure strict compliance with OSHA minimum clearance rules (typically 10 feet for lines under 50kV).
Install continuous timber mudsills under all base plates when resting on soil, asphalt, or gravel to prevent differential settlement.
Verify that all caster wheels on rolling towers have functional swivel and wheel locks engaged before anyone mounts the platform.
The architecture of the scaffolding directly impacts its inherent stability and compatibility with various tie-in methods. Selecting the appropriate system minimizes erection time and maximizes structural safety. Residential projects range from simple single-story painting jobs to complex multi-story custom home builds with intricate rooflines and bay windows. The equipment you choose dictates how easily you can adapt to these architectural challenges.
Traditional H-frame scaffolding is common for basic, low-level residential work. It is relatively easy to assemble on flat surfaces but lacks flexibility when dealing with complex architectural features, bay windows, or sloping ground. The rigid frame dimensions limit where platforms can be placed, often requiring awkward tie-in angles. You are locked into the fixed width and height of the manufactured frames, which rarely align perfectly with residential window heights or roof eaves.

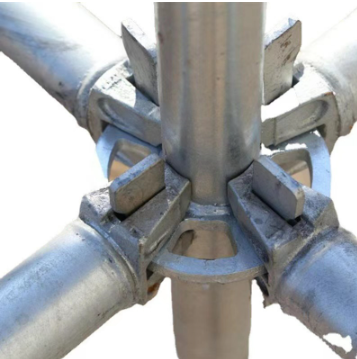

For complex residential facades, a Ringlock Scaffolding System provides superior adaptability. Its rosette-based node connections allow up to eight horizontal and diagonal members to connect at a single point. This enables multi-directional bracing and superior rigidity without the need for constant manual leveling. The modular nature allows the structure to follow the exact contours of the house, keeping the working platform close to the wall and simplifying the installation of horizontal tie tubes. You can bypass obstacles easily by adjusting the ledger heights independently.
Feature | Traditional Frame Scaffolding | Ringlock Scaffolding System |
|---|---|---|
Connection Type | Stacked pins and cross braces | Rosette nodes with wedge locks |
Adaptability | Low (fixed frame sizes) | High (independent ledger placement) |
Load Capacity | Moderate | Very High (multi-directional load distribution) |
Best Use Case | Flat ground, straight walls | Sloping ground, complex facades, heavy loads |
The foundation components dictate the system's capacity to bear weight. Base plates used on soil must be paired with wide timber mudsills to prevent sinking. On solid concrete, standard base plates are sufficient, provided they are leveled using adjustable screw jacks. The screw jack allows you to compensate for uneven concrete pads or sloping driveways, ensuring the vertical standards remain perfectly plumb. A scaffold that is out of plumb will experience severe stress concentrations at the joints.
Rolling scaffolds offer mobility but come with strict operational limits. Personnel and materials must never remain on the platform while the unit is moving. The mechanical requirements for locking casters are stringent; they must feature both wheel rotation locks and swivel locks to ensure the tower remains completely stationary once positioned. Outriggers must be deployed on rolling towers to maintain the height-to-base ratio, and they must be retracted or lifted slightly during movement to avoid catching on ground obstacles.
Tying the scaffold to the residential structure requires evaluating the facade's integrity and the specific tasks being performed. Each method offers distinct advantages and limitations regarding security and potential property damage. You cannot simply tie a rope to a gutter and call it secure. The connection must be rigid, capable of resisting both inward (pushing) and outward (pulling) forces.
Anchor ties provide the most robust connection. This involves drilling into the structural frame—such as timber studs or solid masonry—and installing ring bolts or expansion anchors. Scaffold tubes are then connected to these anchors using specialized fittings. This method guarantees that the scaffold is physically bolted to the strongest parts of the building.
The primary trade-off is the need to patch and repair the facade post-project. Anchor ties must never be installed into non-structural elements like brick veneer, decorative fascia, or mortar joints, as these cannot withstand the pull-out forces generated by a shifting scaffold. When working with timber-framed houses, you must locate the studs accurately; anchoring into the exterior sheathing alone provides zero structural holding power.
Locate the structural studs or solid masonry blocks using a stud finder or architectural plans.
Drill a pilot hole to the exact depth and diameter specified by the anchor manufacturer.
Insert the expansion anchor or screw in the heavy-duty ring bolt until fully seated.
Attach a scaffold tube to the ring bolt using a threaded tie-in fitting.
Connect the other end of the tie tube to both the inner and outer vertical standards of the scaffold using right-angle couplers.
Through ties utilize existing wall openings, such as windows or doors, to secure the structure without drilling into the exterior cladding. A scaffold tube is routed through the opening and secured with an inside cross-tube that spans the interior wall, clamping the scaffold to the building. Timber packing is placed between the inside tube and the interior wall to prevent damage to the drywall or plaster.
This method is highly effective for heritage homes, fragile cladding, or scenarios where drilling is strictly prohibited. However, it requires access to the interior of the house and can temporarily obstruct the use of the window or door. It also requires careful coordination with the homeowner, as tubes will be physically protruding into their living space for the duration of the project.
Reveal ties rely on friction. A reveal tube is wedged horizontally or vertically into a window reveal (the recess of the window) using an adjustable screw mechanism. The main scaffold is then tied to this wedged tube. Timber packing is used to protect the masonry or window frame and to increase the friction coefficient.
This method has strict limitations. Changes in temperature or structural vibration can loosen the friction fit, requiring frequent tension checks. Safety regulations generally mandate that reveal ties cannot account for more than 50% of the total ties on a scaffold system, and they must be supplemented with positive anchor or through ties. They are entirely unsuitable for use on timber-framed windows, as the pressure required to secure the tube will crush the wooden frame.
Multi-stage projects like window replacement, stucco repair, or siding installation require careful tie placement to avoid blocking active work zones. If a tie obstructs a window being replaced, the workflow halts. You cannot remove a tie-in on a whim to make room for a piece of siding; doing so compromises the entire structure.
Contractors calculate tie offsets to ensure workers have continuous, unobstructed physical access to the building envelope. By using longer bridging tubes or strategically placing through ties in adjacent rooms, the scaffold remains securely anchored while keeping the immediate work area clear. The tie-in grid must be planned during the initial design phase to align with the specific renovation sequence. For example, when installing vinyl siding, ties can be placed at the exact locations where downspouts will eventually be installed, hiding the patch holes.
Executing tie-ins and maintaining internal rigidity requires specific, high-grade hardware. The structural integrity of the entire setup relies heavily on the quality of the couplers and bracing elements used. A scaffold is a temporary building, and like any building, its strength is determined by its connections.
Standard pressed steel couplers are suitable for light-duty applications, but securing a scaffold to a building demands heavy-duty hardware. A drop-forged High-Strength Scaffold Coupler provides superior slip resistance and higher load ratings. These couplers are essential for connecting tie tubes to the main scaffold standards. Drop-forged fittings are manufactured by hammering hot steel into a die, aligning the grain structure of the metal for maximum strength.
Right-angle (double) couplers are used for load-bearing 90-degree connections, dictating the load transfer from the scaffold frame to the house tie-in. Swivel couplers allow for diagonal bracing connections. Emphasizing exact torque specifications is critical; under-tightened couplers will slip under load, while over-tightened couplers can deform the scaffold tube or strip the threading. Most standard scaffold couplers require a tightening torque of roughly 50 Nm (37 lb-ft), which should be verified with a calibrated scaffold spanner.
Internal rigidity prevents the scaffold from skewing or twisting under lateral loads. Proper vertical, horizontal, and diagonal (cross) bracing must be installed according to the manufacturer's specifications. Bracing ensures that the scaffold acts as a single, cohesive unit rather than a collection of loose frames. Without diagonal bracing, a scaffold can easily fold in on itself like a parallelogram when subjected to wind or worker movement.
The mandatory installation of guardrails, mid-rails, and toe-boards is integral to the system's overall safety rating. Guardrails prevent personnel falls, while toe-boards stop tools and materials from kicking off the platform and striking people below. These components also add to the overall stiffness of the working platform. Toe-boards must be securely fastened to the vertical standards and sit flush with the platform deck to prevent screws or small hand tools from rolling off the edge.
Even with the right components, improper implementation leads to failure. Identifying common residential setup errors and instituting strict inspection protocols mitigates these risks. Scaffolding accidents rarely happen due to a single catastrophic failure; they are usually the result of multiple small errors compounding over time.
A frequent and dangerous error is tying into non-structural elements. Gutters, decorative fascia, and unsupported brick veneer cannot handle the lateral forces of a scaffold system and will pull away from the house, leading to collapse. Brick veneer is particularly deceptive; it looks solid but is only held to the timber frame by thin metal wall ties. It is not designed to support outward pulling forces.
Mixing incompatible scaffold components from different manufacturers compromises structural integrity. Tolerances vary, and forcing mismatched parts together creates weak points. Furthermore, multi-tier systems face the risk of progressive collapse during erection and dismantling. Ties must be installed progressively as each tier is built and removed only as the corresponding tier is dismantled. Never build the entire scaffold freestanding and then attempt to install the ties afterward.
A daily visual and mechanical inspection is mandatory. The framework should include checking coupler torque, verifying the plumbness of vertical standards, ensuring adequate clearance from overhead electrical lines, and testing tie-in tension. Weather conditions change overnight; high winds can loosen couplers, and heavy rain can wash out the soil beneath mudsills.
Calculating the safe working load (SWL) ensures the system is not overstressed. Heavy materials like roofing tiles, masonry blocks, or wet mortar exert massive downward forces. The total weight of personnel, tools, and materials must remain well below the manufacturer's specified SWL for the specific bay size and bracing configuration. Light-duty scaffolds are rated for 25 pounds per square foot, while heavy-duty masonry scaffolds are rated for 75 pounds per square foot.
Inspection Category | Specific Checks Required | Pass/Fail Criteria |
|---|---|---|
Foundation | Check mudsills, base plates, and screw jacks. | No soil washout; jacks adjusted tightly; plates centered on sills. |
Structure | Verify plumbness and check all diagonal bracing. | Standards are perfectly vertical; no missing braces. |
Connections | Test torque on right-angle and swivel couplers. | Couplers do not slip; threads are not stripped. |
Tie-Ins | Inspect wall anchors, through ties, and reveal tubes. | Anchors are tight in masonry; reveal tubes have not lost friction. |
Platforms | Check planks, guardrails, and toe-boards. | Planks are fully decked and cleated; rails are secure at proper heights. |
Securing scaffolding is a precise engineering task that demands rigorous attention to detail. The integrity of the tie-in is entirely dependent on the structural element it attaches to and the quality of the hardware used. To ensure a safe and compliant residential project, follow these actionable steps:
Assess your home's facade type prior to erection to determine whether anchor ties, through ties, or reveal ties are the safest and most effective method.
Procure a modular system like the Ringlock Scaffolding System for multi-story or complex residential projects to benefit from its built-in rigidity and adaptability.
Source commercial-grade components, specifically certified high-strength couplers, for all load-bearing and tie-in connections.
Consult local occupational safety guidelines to verify exact height-to-base ratio trigger points and mandatory inspection protocols for your jurisdiction.
Establish a daily inspection routine to verify coupler torque, foundation stability, and tie-in tension before any workers access the platform.
A: Scaffolding must be tied to a structure once its freestanding height exceeds a specific multiple of its minimum base dimension. Depending on local occupational safety regulations, this trigger point is typically a 3:1 or 4:1 height-to-base ratio.
A: The 3:1 rule dictates that a scaffold's maximum freestanding height cannot exceed three times its narrowest base dimension. For example, if the base is 5 feet wide, the scaffold can be built up to 15 feet high before it must be physically secured to the building.
A: No. Brick veneer is a non-structural exterior cladding and cannot support the heavy lateral forces or pull-out loads generated by a scaffold system. Tie-ins must penetrate the veneer and anchor directly into the underlying structural framing or solid masonry.
A: Standard guidelines generally require ties to be placed at least every 20 to 26 feet vertically and every 30 feet horizontally. However, specific spacing metrics depend heavily on the scaffold type, wind loads, and local safety regulations, which should always be consulted.
A: Anchor ties involve drilling directly into the building's structural frame to install bolts or anchors. Through ties utilize existing openings, like windows or doors, routing a tube inside the building and clamping it across the interior wall, requiring no drilling into the facade.
A: Outriggers are used to widen the base dimension, increasing the allowable freestanding height before tie-ins are required. Once the scaffold is properly tied to the house according to regulations, outriggers may no longer be necessary for stability, though they aid in initial erection.
A: Remove all personnel, tools, and materials from the platform. Unlock the casters, move the tower over clear, level ground, and avoid overhead power lines. Once in the new position, re-engage all wheel and swivel locks before anyone climbs back onto the structure.
