A critical misconception on many construction sites involves confusing platform components with structural stabilization components. When site managers ask if they can use standard wooden boards to stabilize a frame, the answer is an absolute no. Relying on unapproved materials to brace or tie off temporary structures leads to catastrophic structural failures, severe OSHA and HSE compliance penalties, and immediate project shutdowns. Construction professionals must maintain a strict division between foundation support, working platforms, and the engineered hardware actually required to stabilize the framework. Using standard scaffold planks as makeshift structural ties violates fundamental engineering principles. Proper stabilization requires engineered wall ties, anchors, outriggers, and diagonal bracing specific to the scaffold's design. This article clarifies the distinct roles of sole boards and platform decking, details the industry-standard methods for anchoring frames to buildings, and explains how modern modular systems eliminate the risks associated with improvised timber bracing.
Structural Reality: Standard scaffold boards cannot be used as structural ties, bracing, or anchors to secure scaffolding to a building; doing so violates fundamental engineering and safety regulations.
Proper Board Utilization: Boards are strictly for load-bearing working platforms, edge protection (toe boards), and distributing weight at the foundation (sole boards).
Compliant Stabilization: To properly secure scaffolding, contractors must use engineered wall ties, anchors, outriggers, and diagonal bracing specific to the scaffold's design.
System Selection: Upgrading to a modern Ringlock Scaffolding System drastically reduces the risk of structural instability and provides integrated, secure decking solutions compared to traditional tube-and-fitting setups.
Platform Security: Using an Anti-Slip Scaffold Plank system with integrated locking mechanisms prevents wind-uplift and platform displacement without compromising the structural integrity of the frame.
Defining what constitutes a structurally sound scaffold versus a safe working platform is the first step in site safety. A stable structure resists wind loads, dynamic worker movement, and material weight without swaying or collapsing. A safe platform provides a secure, trip-free surface for workers to stand on. Standard timber boards serve specific functions related to load distribution and fall protection, but they offer zero structural rigidity to the overarching frame. You cannot rely on them to hold the structure together.
Timber sole boards sit directly under steel base plates to distribute the scaffold's vertical load over soft, unpaved, or uneven ground. By increasing the surface area at the contact point, sole boards prevent the metal base plates from sinking into the earth under heavy loads. Engineering requirements dictate that sole boards must be a minimum of 38mm thick and at least 225mm wide, conforming to BS 2482 or OSHA standards, depending on the ground's bearing capacity. While sole boards prevent the base from sinking or sliding, they do not secure the structure from tipping, racking, or lateral wind loads. They simply manage ground pressure.
Toe boards are mandatory edge protection components installed at the perimeter of working platforms. Regulations require toe boards to be a minimum of 150mm in height. Their primary function is to secure tools, loose materials, and equipment, preventing them from falling and striking workers or pedestrians below. They also act as a physical barrier to stop workers' feet from slipping off the platform edge. Like sole boards, toe boards contribute nothing to the structural stability of the scaffold frame. They attach to the standards or ledgers but do not brace them.
Attempting to use timber boards as makeshift diagonal bracing or structural ties introduces severe technical risks to the site. Standard scaffold couplers, such as right-angle or swivel clamps, are engineered exclusively to grip 48.3mm outer diameter steel or aluminum tubes. It is physically impossible to securely clamp a rectangular wood board using these circular fittings. Wood boards lack the standardized tensile and compressive strength ratings required to resist dynamic structural loads and environmental stresses. Wood splits, warps, and snaps under pressure, leading to sudden and catastrophic frame collapse.
Component | Primary Function | Structural Contribution | Approved Materials |
|---|---|---|---|
Sole Board | Distribute vertical load at the base | Prevents sinking; no lateral support | Timber (min 38mm thick), Steel plates |
Toe Board | Edge protection for tools/materials | None | Timber, Steel, Aluminum |
Platform Plank | Provide a safe working surface | Minimal (diaphragm action in some systems) | LVL Timber, Steel, Aluminum |
Diagonal Brace | Prevent racking and swaying | High (maintains geometric rigidity) | Steel or Aluminum tubes (48.3mm OD) |
To prevent scaffold collapse, overturning, or detachment under wind load and live load conditions, contractors must utilize engineered methods. Proper stabilization relies on a combination of ties, anchors, bracing, and outriggers designed to handle specific load calculations. You must follow strict installation protocols to ensure the frame remains rigid.
Tying the scaffold to a permanent, rigid structure is the most effective way to maintain stability. Several methods exist depending on the building's facade and structural integrity. You must select the correct tie based on the base material of the building.
Through Ties: These involve securing the scaffold through windows, doors, or other structural openings using internal and external bridging tubes clamped across the opening.
Box Ties: This method secures the frame around structural concrete pillars, columns, or steel beams using scaffold tubes and right-angle couplers to create a rigid box around the structural member.
Reveal Ties: These rely on friction within window or door reveals. A tube is squeezed tightly into the opening using a reveal pin. This method is limited to light-duty applications and requires frequent safety audits because friction fails if the building shifts or the pin loosens.
Drill-In Anchors: For solid facades, heavy-duty mechanical expansion anchors or chemical resin anchors are drilled directly into the concrete or brick masonry. Ring bolts are then attached, and the scaffold is tied to these bolts using steel tubes and couplers.
Maintaining the geometric rigidity of the scaffold bays requires steel ledgers, transoms, and sway bracing. Diagonal bracing prevents the rectangular bays from parallelogramming or swaying under lateral forces. Façade bracing runs along the face of the scaffold, crossing multiple bays to provide longitudinal stability. Only approved steel or aluminum tubes must be used for this purpose. Never substitute these with timber.
When working with freestanding mobile towers or structures that cannot be tied to a permanent facade, contractors must widen the base width ratio to maintain stability. Angled steel tubes known as rakers, or structural outriggers, attach to the base of the scaffold and angle down to the ground. This increases the footprint of the tower, ensuring you secure scaffolding against overturning forces without relying on wall ties. Proper raker installation requires firm ground support and correct angle calculations.
Assess the ground conditions to ensure adequate bearing capacity for the raker base plates.
Attach the raker tube to the main scaffold standard using load-bearing right-angle couplers.
Angle the raker away from the scaffold at a maximum of 3:1 ratio (vertical to horizontal).
Secure the base of the raker with a base plate and sole board.
Install a horizontal tie tube connecting the base of the raker back to the main scaffold frame to prevent outward slip.
Comparing traditional methods against modern modular systems reveals significant differences in structural security, erection speed, and reliance on worker skill. The choice of system directly impacts the safety and efficiency of the project.
Traditional tube and clamp scaffolding offers high flexibility, making it suitable for complex architectural facades, historical restorations, and irregular industrial structures. However, its stability is highly dependent on the erector's skill. Every connection relies on friction clamps that must be tightened to specific torque settings, typically 54 Nm. Fittings loosen over time under vibration, requiring rigorous, ongoing inspections to ensure the frame remains stable. This constant maintenance increases labor hours and safety risks.
Upgrading to a modern Ringlock Scaffolding System provides immense structural advantages. The engineered rosette joints allow up to eight connections per node in a single plane, creating a self-squaring, highly rigid structure. The wedge-lock connections automatically lock ledgers and diagonal braces at exact angles, completely removing any opportunity for site crews to use improper wood bracing.
The built-in gravity-assisted wedge locks ensure the system remains secure under heavy dynamic loads, high wind conditions, and seismic activity. Furthermore, the standardized components allow for faster erection and dismantling times, reducing labor costs while maintaining strict compliance with OSHA 1926 Subpart L and EN 12811-1 standards. The system forces correct assembly, minimizing human error.
While boards do not secure the overarching structure, ensuring the platform itself is secure is vital for worker safety. Platform boards must be properly selected, installed, and tied down to prevent movement. A loose board is a severe hazard.
Traditional Laminated Veneer Lumber (LVL) timber boards are common but have limitations regarding lifespan, weight, and flame resistance. Wood absorbs moisture, becomes heavy, and eventually rots. Metal alternatives offer superior longevity and consistent load-bearing capacity. Steel planks are highly durable and fire-resistant, making them ideal for heavy industrial sites, while aluminum planks offer a lightweight alternative that resists corrosion.

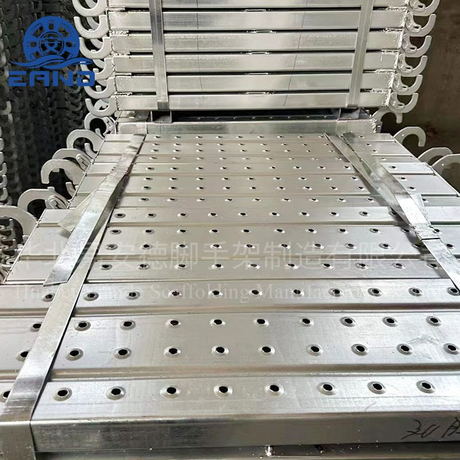

High-traction surfaces are a necessity in wet, icy, oily, or coastal industrial environments. Implementing an Anti-Slip Scaffold Plank reduces workplace slip-and-fall liabilities. Perforated steel or textured aluminum planks provide superior grip for workers' boots, even in adverse weather conditions.
In modular systems, these metal planks offer an additional structural benefit. Steel anti-slip planks lock directly onto the horizontal ledgers using integrated wind claws. Once locked in place, the continuous deck acts as a horizontal diaphragm. While it does not replace diagonal bracing, this diaphragm action helps secure the scaffold frame from twisting, adding an extra layer of rigidity to the entire bay.
Platform boards must be secured to prevent uplift from high winds and displacement from worker movement. Timber boards are typically secured using board retaining clips (BRCs), lashing wire, or heavy-duty board clamps. Regulations dictate strict overhang limits. Timber boards must have a minimum 50mm overhang past their transom supports to prevent slipping off, but a maximum 150mm overhang to prevent a dangerous seesaw effect if a worker steps on the end. Additionally, contractors must maintain less than a 25mm gap between boards to eliminate trip hazards and prevent small tools from falling through the deck.
Failing to secure scaffolding properly carries severe legal, financial, and physical consequences. Site managers must adhere strictly to regulatory standards to mitigate these implementation risks. Ignorance of the rules is not a defense during an OSHA inspection.
OSHA requires tying scaffolding to the structure when the height exceeds four times the minimum base width. In the UK, HSE guidelines and TG20:21 compliance sheets dictate specific tie-in patterns based on wind exposure and load classes. Scaffolds must be erected according to their designated load capacity calculations: Light-duty (25 lbs/sq ft), Medium-duty (50 lbs/sq ft), and Heavy-duty (75 lbs/sq ft). Exceeding these limits causes structural failure.
Routine safety audits frequently uncover dangerous practices. Common failures include using split or rotten timber boards as structural supports, missing or improperly installed wall ties, and the unauthorized removal of structural bracing by finishing tradesmen like painters or glasiers who find the tubes inconvenient. Unsecured platform boards prone to wind uplift are another frequent citation. Inspectors look for these specific violations immediately upon arriving at a site.
To maintain a safe site, implement mandatory tagging systems at all access points, clearly indicating whether the structure is safe for use. A designated Competent Person must conduct routine inspections before every work shift, after severe weather events, and following any structural modifications. When using drill-in anchors, it is critical to pull-test a sample of the anchors to 1.5 times the working load limit using a calibrated tester to verify load resistance before the full scaffold is erected.
Audit your current scaffolding inventory to identify and remove degraded timber boards immediately.
Consult with a certified scaffolding engineer regarding proper tie-in patterns and load calculations for all upcoming projects.
Transition away from outdated timber platforms to modular steel systems in high-risk, wind-exposed environments.
Implement a mandatory daily inspection and tagging protocol managed by a designated Competent Person.
A: No. Wood boards lack standardized tensile ratings, cannot be safely clamped using standard scaffold couplers, and do not meet OSHA or HSE standards for structural bracing. Only approved steel or aluminum tubes must be used for bracing.
A: A representative sample of anchors (typically 1 in 10 or a minimum of 3) must be pull-tested using a calibrated tie tester before the scaffold is signed off for use, and re-tested if structural integrity is compromised.
A: A sole board is a thick timber board placed under the metal base plates of a scaffold. Its purpose is to distribute the vertical load of the structure over a wider area, preventing the scaffold from sinking into soft ground.
A: Overlapping boards creates a trip hazard and is generally discouraged. Boards should be laid flush end-to-end over a transom. If overlapping is unavoidable, the overlap must occur directly over a support.
A: If a scaffold exceeds the safe height-to-base ratio and is not tied to the building or stabilized with outriggers, it is at extreme risk of overturning. Wind loads and worker movement can easily cause an untied scaffold to collapse.
A: Yes. Metal planks offer superior safety because they have consistent load ratings, do not rot from moisture, are fire-resistant, and often feature integrated locking mechanisms and anti-slip surfaces that prevent displacement.
