The highest probability of catastrophic scaffolding failure occurs not from vertical load limits, but from lateral instability and improper wall anchoring. When wind loads increase or workers move dynamic materials across upper platforms, an unanchored structure becomes highly susceptible to tipping, buckling, or collapsing away from the facade. Site managers and contractors must balance rapid erection times with strict regulatory compliance, ensuring multi-tier structures withstand environmental and operational stresses without shifting.
Moving beyond basic base-plate leveling, this guide evaluates the engineered tie-in methods, hardware specifications, and structural anchoring techniques required to safely secure scaffolding to commercial and residential facades. We examine the exact hardware tolerances, compliance thresholds, and physical execution steps necessary to anchor temporary structures to solid masonry, concrete, or structural steel substrates. Proper execution prevents structural warping and eliminates single-point failures on active job sites.
Height-to-Base Ratios Dictate Action: Scaffolding must be secured to a solid structure once it exceeds the 3:1 or 4:1 height-to-base width ratio, depending on local regulatory standards.
Hardware Dictates Capacity: The structural integrity of a wall tie is only as reliable as its weakest connection point; utilizing a High-Strength Scaffold Coupler is non-negotiable for achieving required slip ratings (e.g., 27 kN).
Methodology Matches the Facade: Selection between anchor ties, through ties, and reveal ties depends entirely on the substrate (solid masonry, concrete, or structural steel) and permissible building alterations.
Clearance Tolerances: Standard safety practices dictate strict maximum clearances (typically 9 inches) between the working platform and the wall to prevent fall hazards and maintain structural rigidity.
Defining what constitutes a secure scaffold requires understanding the lateral forces acting upon the structure. A properly tied scaffold must resist both inward compression forces pushing the frame toward the building and outward tension forces pulling it away. Wind loads, netting, debris chutes, and cantilevered loading bays exponentially increase these lateral forces. If the tie assemblies cannot manage both tension and compression, the entire bay geometry warps, leading to progressive structural failure. You cannot rely on gravity alone when erecting multi-level platforms. The physics demand rigid lateral restraint to transfer dynamic loads directly into the permanent building structure.
Regulatory thresholds dictate exactly when these ties become legally required. The fundamental rule across most safety jurisdictions involves the height-to-base ratio. Scaffolding must be physically tied to a stable structure once its height exceeds four times its minimum base dimension. In certain jurisdictions or specific high-wind environments, this threshold tightens to a 3:1 ratio. Wind load calculations further alter these baseline requirements. When scaffold bays are enclosed with weather sheeting or debris netting, the structure acts as a massive sail. This increased windage requires a much denser grid of wall ties to prevent the anchors from shearing under extreme atmospheric pressure. Site engineers must calculate the total surface area exposed to wind and adjust the tie frequency accordingly.
Evaluating the engineering math behind tie-ins reveals strict load capacities and slip ratings. High-capacity anchoring components are often rated for up to 27 kN of slip resistance. Achieving this standard requires precise hardware selection and flawless installation. A common misconception in the field is the double coupler assumption. Some crews assume that placing two standard right-angle couplers side-by-side doubles the load rating of the tie. Best practice dictates rating a tie assembly to a single double coupler's capacity. Load sharing between two adjacent couplers is rarely perfectly equal. If the primary coupler slips, the sudden dynamic shock load will almost certainly cause the secondary coupler to fail immediately. Engineering calculations must rely on the verified slip rating of a single, certified connection point to prevent dangerous single-point failures.
Standard Wind Load Multipliers for Scaffold Tying | |||
Scaffold Condition | Wind Exposure Level | Tie Frequency Adjustment | Lateral Load Increase |
|---|---|---|---|
Open Frame (No Netting) | Urban / Shielded | Standard Grid (e.g., every 260 sq ft) | Baseline (1.0x) |
Debris Netting Installed | Moderate / Suburban | Increase frequency by 30% | 1.5x - 2.0x |
Fully Sheeted / Enclosed | Coastal / High Altitude | Double tie frequency | 3.0x - 4.0x |
Field crews must understand that a 27 kN slip rating is not a suggestion. It represents the absolute minimum resistance required to keep the scaffold attached to the wall during a severe weather event. When you install a tie, you are creating a structural bridge. That bridge must handle the weight of workers leaning against the guardrails, the vibration of material hoists, and the aerodynamic drag of the entire scaffold face. We test these connections rigorously because a single failed tie transfers its load to the adjacent ties. If those adjacent ties are already near their maximum capacity, a zipper effect occurs, tearing the entire scaffold away from the building.
Different building facades require entirely different anchoring approaches. Selecting the correct method prevents substrate damage while guaranteeing the necessary tensile strength to hold the scaffold rigid. You cannot use a masonry anchor on a glass facade, and you cannot use a friction reveal tie on a crumbling brick wall. The substrate dictates the hardware.
Anchor ties provide the highest load capacity by utilizing dowels, pitons, or heavy-duty eye-bolts embedded directly into concrete, solid masonry, or bolted into the building's structural timber and steel frame. Implementation involves drilling into the substrate, setting the anchor to the specified depth, threading the eyebolt, and hooking it to a structural scaffold tube. This tube is then fastened to the main scaffold standard with a load-bearing clamp. While this method offers superior lateral stability, it requires structural drilling. Post-project, crews must patch the facade, which adds remediation time and labor costs. We use drop-in anchors for solid concrete and specialized resin anchors for older, porous masonry where mechanical expansion might crack the brick.
When installing anchor ties, the depth of the embedment is critical. A shallow anchor will pull out under tension, while an over-drilled hole might cause the anchor to slip backward. Field teams must use depth gauges on their hammer drills and blow out the dust from every hole before inserting the anchor. Dust acts as a lubricant, drastically reducing the friction grip of mechanical anchors and ruining the chemical bond of resin anchors. Once the anchor is set, the ring or eyebolt must sit flush against the substrate to prevent bending moments when lateral loads are applied.
Through ties offer a non-destructive alternative by passing a scaffold tube directly through a structural building opening, such as a window aperture. The tube is secured internally using a cross-tube spanning the inside of the opening, often padded with timber to prevent damaging the interior walls. This method is best utilized during early-stage construction before windows and doors are installed. Site managers must strategically plan through ties around active workflows. For example, during a 3-stage system assembly, ties must be positioned so they do not block structural openings when glazing teams arrive to install windows.
The internal cross-tube, or transom, must bear against a solid structural frame, not just drywall or decorative trim. We often use heavy timber spreader plates to distribute the load across a wider area of the interior wall. The exterior tube is then clamped to the scaffold standard. This creates a solid push-pull connection without drilling a single hole. However, through ties restrict interior access and can interfere with drywall installation, painting, and window fitting. Coordination between the scaffolding contractor and the interior trades is mandatory to prevent unauthorized removal of these critical ties.
Wall tie-in brackets utilize heavy-duty, adjustable arms designed to hook directly into an eye-bolt and nut assembly embedded directly in the masonry mortar joints. This method is ideal for progressive masonry work. As bricklayers build the wall, they build the anchors into the joints at specified intervals. The scaffold is tied into these anchors as it rises. This eliminates the need to drill into finished brickwork later, maintaining the aesthetic integrity of the facade while providing robust structural support.
These embedded anchors must be placed in the bed joints, not the vertical head joints, to ensure maximum pull-out resistance. The mortar must be allowed to cure sufficiently before the scaffold applies full lateral loads to the bracket. We coordinate closely with the masonry foreman to ensure the anchors are placed exactly where the scaffold nodes will align. This prevents awkward, angled tie tubes that introduce eccentric loads into the scaffold frame. A straight, perpendicular tie is always the strongest connection.
Comparison of Scaffolding Tie Methods | |||
Tie Method | Ideal Substrate | Primary Advantage | Primary Disadvantage |
|---|---|---|---|
Anchor Ties | Concrete, Solid Masonry, Steel | Highest load capacity and rigidity | Requires drilling and facade patching |
Through Ties | Open window/door apertures | No drilling or substrate damage | Blocks openings, limits interior access |
Wall Tie-In Brackets | New masonry construction | Built directly into mortar joints | Requires coordination with bricklayers |
The physical connection between the wall anchor and the scaffold frame dictates the safety of the entire assembly. Standard right-angle couplers often lack the friction grip necessary to prevent slipping under high lateral loads, especially during severe weather events or heavy material loading. You cannot compromise on the hardware that links the building to the temporary structure.
To transfer lateral tension and compression forces safely from the tie tube to the main scaffold standard, crews must utilize a High-Strength Scaffold Coupler. These engineered components undergo strict material grading and must meet rigorous certification standards, such as EN 74. When evaluating couplers, site managers must verify the torque specifications required for installation. An under-torqued coupler will slip, while an over-torqued coupler can deform the scaffold tube or strip the threading, compromising the connection. We use calibrated torque wrenches on site to ensure every single load-bearing coupler meets the manufacturer's exact specifications. Visual inspections are not enough; you must verify the torque mechanically.

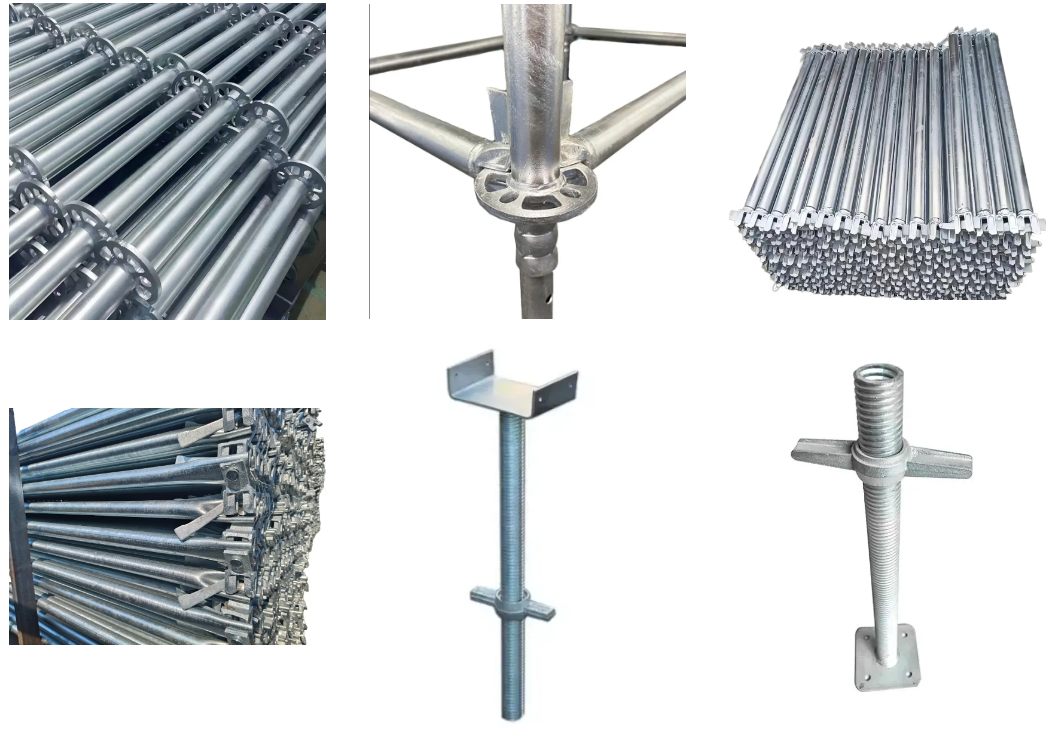

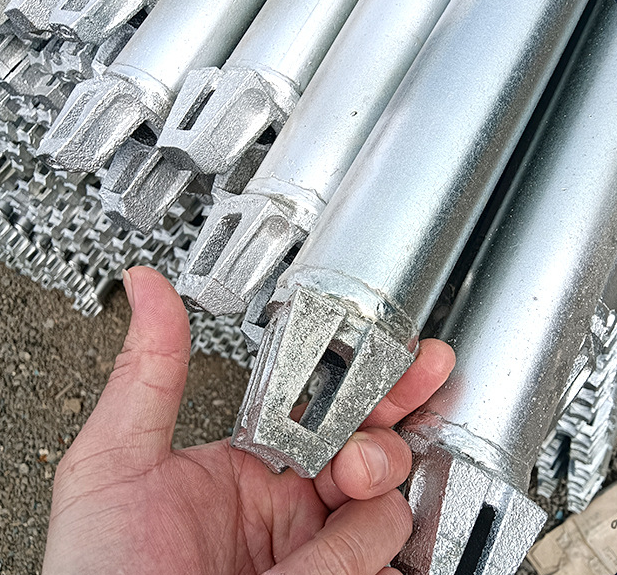

Modern modular scaffolding streamlines the tie-in process through pre-engineered node points. Utilizing a Ringlock Scaffolding System allows crews to attach standard tie tubes directly to the system's rosettes. This maintains the scaffolding's geometric load distribution without introducing eccentric forces that occur when tubes are clamped randomly along a vertical standard. The scalability of the Ringlock design ensures that wall ties integrate seamlessly into the existing grid, providing predictable, uniform strength across the entire facade. The rosette acts as a centralized hub, transferring the lateral loads from the tie tube evenly into the vertical standards and horizontal ledgers.
When selecting hardware, traceability is paramount. Every coupler and anchor should have stamped identification marks indicating its batch number and load rating. If a component fails, we need to trace it back to the manufacturing run. Unmarked, generic hardware has no place on a professional job site. The risk of internal casting voids or substandard steel alloys is too high. We specify drop-forged couplers over pressed steel variants for all critical tie-in points because drop-forged steel offers superior resistance to dynamic shock loads.
Executing a wall tie installation requires strict adherence to sequence and proximity limits. Standard safety practices dictate maintaining a maximum 9-inch clearance between the inner edge of the scaffold platform and the face of the wall structure. This minimal gap ensures tie rigidity, limits the leverage applied to the anchor points, and eliminates dangerous worker fall hazards between the platform and the building. If the gap exceeds 9 inches, workers can easily step through, and the tie tubes become long enough to act as levers, multiplying the forces exerted on the wall anchors.
The eyebolt-to-tube connection sequence must be handled systematically to ensure maximum strength and compliance:
Survey the facade to locate solid structural members, avoiding mortar joints in older brickwork or hollow block cavities.
Drill and set the anchor into the substrate at the engineer-specified depth and diameter, ensuring the hole is completely free of dust.
Conduct a preliminary pull test on the installed anchor using a calibrated dynamometer to verify substrate holding capacity.
Connect a dedicated, straight tie tube to the anchor ring, ensuring it sits perpendicular to the facade.
Secure the opposite end of the tie tube directly to the scaffold standard or ledger using a certified high-strength coupler.
Apply the exact torque specified by the manufacturer using a calibrated torque wrench.
Tie distribution patterns depend heavily on the scaffold's dimensions and environmental factors. Engineers typically evaluate grid versus staggered tie patterns. A staggered pattern often provides better resistance to twisting forces across the facade. The square footage coverage per tie must be calculated based on the scaffold height, the cladding status, and local environmental wind loads. We typically start with a baseline of one tie every 260 square feet for open scaffolds, but this density increases rapidly as we add debris netting or solid weather enclosures.
Implementation carries inherent risks, primarily structural substrate failure, brick veneer pulling away under tension, or complete anchor pull-out. To mitigate these catastrophic risks, crews must conduct preliminary tensile pull tests on wall anchors. Using a calibrated dynamometer, safety officers apply a proof load to the installed anchor before attaching the scaffold frame. This verifies the substrate's holding capacity and ensures the anchor was installed correctly. We test a minimum of 5% of all installed anchors, and if any fail, the testing frequency increases immediately. You cannot assume the wall is strong enough; you must prove it with mechanical testing.
Selecting the right anchoring strategy involves weighing speed against structural alteration. Drilled anchor ties offer rapid installation and immediate high-capacity strength, keeping the erection schedule on track. However, the remediation costs of patching brick, masonry, or stucco post-project can be significant. Site managers must calculate whether the labor saved during erection offsets the labor required for facade repair. On historical buildings, drilling is often strictly prohibited, forcing us to rely entirely on through ties or heavy compression reveal ties, which take longer to install but preserve the masonry.
The cost of failure heavily outweighs the investment in certified hardware. Sourcing cheap, uncertified couplers introduces massive liability. Unverified hardware lacks guaranteed slip ratings, making it impossible to accurately calculate the scaffold's lateral resistance. Investing in traceable, certified hardware guarantees performance under load, reduces legal liability, and ensures compliance with strict occupational safety regulations. A single scaffold collapse costs infinitely more than outfitting your entire inventory with drop-forged, EN 74 certified couplers. We view premium hardware not as an expense, but as a mandatory insurance policy against gravity and wind.
Securing scaffolding requires precise engineering, verified hardware, and strict adherence to installation protocols. The choice of tie-in method must align with the facade material, local regulations, and the specific lateral load requirements of the project. Relying on guesswork or substandard hardware inevitably leads to structural instability and severe safety hazards on the job site.
Conduct a thorough substrate assessment to determine the most viable anchoring method before scaffolding erection begins.
Calculate the required tie frequency and distribution pattern based on local wind loads and whether the scaffold will utilize debris netting.
Perform calibrated tensile pull tests on initial wall anchors to verify substrate strength and installation accuracy.
Source all anchoring hardware and couplers from reputable manufacturers that provide clear certification data.
A: Standard safety regulations typically mandate a maximum clearance of 9 inches between the inner edge of the scaffold platform and the face of the wall. This minimizes fall hazards and maintains structural rigidity.
A: Scaffolding must generally be tied to a structure when its height exceeds four times its minimum base dimension. The exact tie spacing depends on wind loads, netting, and manufacturer specifications.
A: Yes. Through ties pass a scaffold tube through an existing structural opening, like a window, securing it internally with a cross-tube. Reveal ties use friction tubes wedged inside window reveals, avoiding substrate drilling.
A: High-capacity scaffold wall ties are often required to meet a 27 kN slip rating. This ensures the connection can withstand severe lateral tension and compression forces without failing.
A: Brick veneer is generally not strong enough to support standard anchor ties. Ties must penetrate through the veneer into the structural framing behind it, or crews should utilize through ties via window openings.
A: An anchor tie involves drilling directly into the building substrate to embed an eyebolt or piton. A through tie passes a tube through an open aperture and secures it to the inside wall, requiring no drilling.
A: Through-ties must be strategically positioned so they do not obstruct the window frame installation. Crews coordinate the tie locations with the glazing schedule, shifting ties to adjacent solid walls before window installation begins.
