Erecting a scaffold safely requires bridging a critical operational gap. Procurement decisions often clash against on-site installation realities. Poor execution puts worker lives and project timelines at severe risk. Proper erection protocols dictate your labor efficiency directly. They mitigate massive compliance risks, including severe OSHA citations. They also ensure absolute structural integrity for every worker above ground. We aim to provide a transparent, step-by-step technical framework here. You will learn how to assemble a modern framework effectively. This guide highlights hidden implementation risks. It also offers concrete evaluation criteria for project managers and safety officers. You can deploy these strategies immediately to protect your crew.
Erection efficiency heavily depends on ground preparation; an unleveled base creates compounding structural deviations on higher tiers.
Modular setups, particularly the Ringlock scaffolding system, drastically reduce labor hours compared to traditional tube-and-clamp setups due to fixed-angle rosette nodes.
Regulatory compliance mandates continuous plumbing, leveling, and inspection by a designated "Competent Person" at every vertical stage.
Sourcing decisions should weigh upfront material costs against long-term operational scalability, component compatibility, and manufacturer technical support.
Ground condition determines your entire structural safety. You must evaluate soil bearing capacity first. Soft dirt requires wide mudsills. Mudsills distribute the heavy point load of base plates safely. Without them, base jacks puncture the soil. This causes deadly structural sinking.
Map out all overhead power lines early. You must maintain minimum clearance distances at all times. Usually, this means staying at least 10 feet away from uninsulated lines. Assess wind exposure factors closely. High winds introduce dangerous lateral loads. Coastal or high-altitude sites demand specific wind-load engineering calculations.
Staging components intelligently saves massive amounts of time. Outline a strict staging area layout. Follow these component staging guidelines to minimize downtime:
Group all base jacks and mudsills near the starting corner.
Stack vertical standards together based on length.
Organize horizontal ledgers in a separate, accessible zone.
Keep diagonal braces close to the assembly face.
Verify your certified professional is present. Regulatory rules require a Competent Person on site. They direct the erection process directly. They also validate your safety plan before work begins. Never start assembly unless this professional gives explicit approval.
Position your mudsills according to the engineered layout. Place base jacks precisely in the center of these mudsills. Install base collars directly over the jacks. This creates your foundation. Connecting the lowest ledgers remains the most crucial step. Attach these ledgers and transoms to square the base.
Use a heavy-duty spirit level constantly. You must ensure the bay is perfectly level. Check plumb before adding vertical height. A skewed base ruins the entire structure.
Common Mistake: Skipping the squaring process. If your base bay is not a perfect square, higher tiers will refuse to connect.
Insert the first set of standards into the base collars. These vertical tubes support all downward weight. Secure the next level of ledgers at your required deck height. Two workers should coordinate this step closely. One holds the standard plumb. The other locks the ledger into place.
Attach diagonal braces immediately. These braces establish vital structural rigidity. They prevent dangerous twisting, also known as sway. Every standard requires proper bracing according to your design drawing.
Install steel or aluminum planks flush across the transoms. Gaps between planks create severe trip hazards. Ensure all locking mechanisms engage fully. Wind latches must lock down tight. High winds can lift unsecured planks easily.
Integrate safe access routes next. Install internal ladders or dedicated stair towers. Never allow workers to climb the cross braces. Climbing braces causes fatigue and leads to deadly falls. A stair tower improves worker speed and safety simultaneously.
Install top rails at 42 inches above the deck. Place mid-rails halfway down. Secure toeboards on all open sides. Toeboards prevent tools from dropping onto workers below. Dropped objects cause a large percentage of site injuries.
Implement wall ties or outriggers next. You must follow the height-to-base ratio closely. OSHA enforces the 4:1 rule rigidly. If your structure height exceeds four times its base width, you must tie it to a permanent wall. Outriggers widen the base for freestanding towers.
Project managers often compare modular rosette-based setups against traditional tube-and-clamp methods. Tube-and-clamp requires loose fittings, heavy wrenches, and highly skilled labor. Cuplock offers speed but limits angle adjustments. The Ringlock Scaffolding System solves these critical issues. It represents a premium solution category for modern construction.

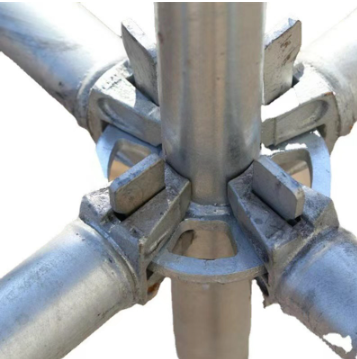

Ringlock utilizes a unique central rosette. Each rosette features up to eight connection points. This feature allows for complex geometries easily. You can build circular or highly angular structures seamlessly. You do not need specialized, expensive fittings. The built-in rosette handles everything.
Consider the labor return on investment carefully. We must acknowledge a transparent assumption. Ringlock carries a higher initial procurement cost. However, the wedge-pin locking mechanism reduces hammer-time dramatically. It eliminates the need for wrench-tightening labor. This yields a much lower total cost of erection. Labor usually represents your highest project expense.
Assembly Efficiency Comparison Chart | |||
System Type | Connection Method | Labor Skill Required | Erection Speed |
|---|---|---|---|
Tube and Clamp | Manual bolts and couplers | High | Slow |
Cuplock | Top/bottom sliding cups | Medium | Fast (Right angles) |
Ringlock | Rosette and wedge-pin | Low to Medium | Very Fast (All angles) |
Regulatory alignment protects your business from lawsuits and fines. In the United States, OSHA 1926 Subpart L governs all erection protocols. European projects strictly follow EN 12810 and EN 12811 standards. You must align your local practices to these global benchmarks. They mandate specific material thicknesses and structural testing methods.
You must differentiate between load classifications clearly. Load capacity impacts component spacing directly.
Light-duty (25 psf): Used primarily for inspection or painting. Workers use very few tools here.
Medium-duty (50 psf): Suitable for bricklayers or plasterers. The deck holds materials and workers safely.
Heavy-duty (75 psf): Designed for heavy masonry or stone construction. Bays are shorter to support intense weight.
Explain the mandatory tagging system to your entire crew. You must implement shift-based inspections rigidly. The Competent Person signs the tag after every inspection.
Green Tag: 100% safe. Ready for general use.
Yellow Tag: Safe, but carries specific restrictions. You might need a fall arrest harness.
Red Tag: Unsafe. Do not use under any circumstances. Erection or dismantling is currently in progress.
Out-of-plumb drift destroys structural integrity silently. A simple 1-inch deviation at the base seems minor. However, it results in dangerous structural instability at 30 feet. Gravity amplifies the lean exponentially. You must level the first tier perfectly. Check plumb on every vertical standard.
Address the severe risk of component mixing. Contractors often mix parts from different manufacturers. This action voids all warranties instantly. It also creates unpredictable load capacities. Small variations in steel tube diameter cause weak joints. Never mix brands on a single tower.
Missing wedge pins cause catastrophic joint failures. Loose fittings pull apart under wind loads. Detail the consequences of incomplete connections to your team. You must enforce the "hammer strike" verification. A worker strikes the wedge pin downward firmly. The sound changes from a dull thud to a sharp ring. This sound confirms a locked joint.
Best Practice: Conduct a joint audit before allowing other trades onto the platform. Strike random wedge pins to verify tightness.

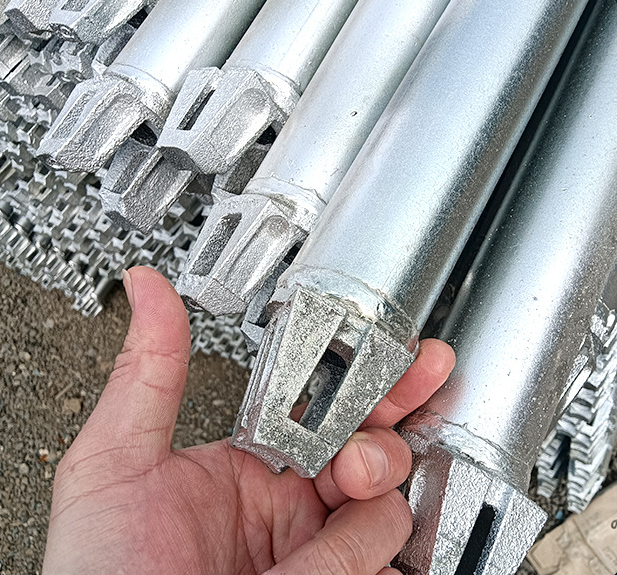

Choosing a reliable supplier requires strict shortlisting logic. You should demand complete traceability of steel grades. Ask for independent load-testing certifications. Examine the galvanization quality closely. Hot-dip galvanization prevents rust inside the tubes. Paint only protects the outside temporarily. Quality components last decades.
Assess operational scalability carefully. Can the equipment adapt to future projects? Industrial boiler maintenance requires intricate, circular builds. Commercial masonry requires long, straight runs. Your chosen Scaffolding System must handle both scenarios profitably.
Technical support defines a great vendor partnership. Importance lies in pre-project planning. Partner with vendors who provide stamped engineered drawings. They should offer comprehensive erection manuals. Some elite manufacturers provide on-site training for your crew. Good support reduces installation errors drastically.
Take actionable next steps today. Request a custom material takeoff from your chosen engineering team. Consult with them regarding your specific site hazards. Request a detailed quote for a fully certified setup. Upfront planning saves thousands of dollars later.
Meticulous base preparation forms the heart of safe construction. Ground leveling dictates the success of every tier above it. Utilizing efficient modular systems reduces your reliance on slow, manual labor. Strict adherence to safety protocols keeps your workforce alive. You cannot compromise on these three pillars.
Final reinforcement matters greatly. Investing in a high-quality framework reduces long-term labor costs. It eliminates severe compliance liability. Stop wasting hours on outdated assembly methods. Train your crew properly, source premium materials, and execute the build flawlessly. Your next project's profitability depends entirely on this foundation.
A: A designated "Competent Person" legally oversees the erection. OSHA defines this as someone capable of identifying existing hazards. They must have authorization to take prompt corrective measures. They verify the design, supervise the assembly, and sign the daily inspection tags to ensure compliance.
A: Ringlock generally reduces labor hours by 30% to 50%. The fixed rosette nodes and wedge-pin locks eliminate manual wrench tightening. A three-person crew can erect a Ringlock tower significantly faster than measuring and bolting traditional tube-and-clamp components.
A: You must tie the structure to a wall when it exceeds a 4:1 height-to-base ratio. If the base width is 5 feet, you must tie it in before reaching 20 feet high. This rule prevents overturning from wind loads or worker movement.
A: No. You must reverse-engineer the dismantling process exactly. Remove components top-down in the reverse order of assembly. Pulling lower braces or ledgers early causes sudden, catastrophic collapse. Always maintain stability and tie-ins until the top sections are fully removed.
