Temporary access structures often introduce significant operational risks to major construction projects. High labor demands, unpredictable erection delays, and sudden safety compliance failures create severe site bottlenecks. Moving away from traditional tube-and-fitting setups toward modern modular solutions represents a highly strategic business decision. It minimizes your reliance on specialized physical labor and simplifies site logistics. Understanding the exact technical characteristics of a scaffolding framework is absolutely essential today. Site managers need this foundational knowledge to effectively evaluate structural safety, ensure rapid project scalability, and project long-term lifecycle returns. We will explore how engineered modular designs fundamentally outperform older, manual methods on active sites. You will learn the core structural behaviors, critical performance metrics, and vital procurement criteria required for modern builds. Our comprehensive breakdown provides the necessary insights to confidently guide your next major equipment investment and maintain a flawless site safety record.
Standardized Modularity: Pre-engineered connection points eliminate guesswork, reducing erection and dismantling time by up to 50% compared to traditional methods.
Inherent Rigidity: Fixed-angle nodal connections ensure predictable load-bearing capacities and structural stability.
Material Durability: High-grade steel and hot-dip galvanization define the lifespan and maintenance costs of the system.
Complex Adaptability: Modern iterations, particularly the Ringlock scaffolding system, allow for multi-directional configurations suitable for complex architectural or industrial geometries.
Traditional tube-and-clamp setups depend heavily on an increasingly scarce pool of skilled labor. Erectors must manually measure every single span across the entire structure. They also tighten each individual coupling by hand using standard wrenches. This repetitive manual process introduces frequent human error into the construction cycle. Workers might slightly under-tighten a clamp during a long shift. They might miscalculate a critical load angle on a complex building corner. Consequently, older setups entirely lack standardized load predictability. You cannot easily verify their exact structural capacity without conducting extensive manual inspections on every joint. Site auditors spend countless hours checking torque specifications on random connection points.
A modern Scaffolding System solves these baseline problems fundamentally. It acts as a highly engineered asset rather than a loose collection of arbitrary pipes. Manufacturers build every individual component to exact, unforgiving tolerances. This critical design shift moves the ultimate safety burden away from the installer's physical strength. Instead, the geometric design of the system guarantees inherent structural stability. Workers simply slot the pre-measured components together.
Project leaders measure operational success through very specific field metrics. You want drastic reductions in overall site labor hours. You need zero-incident safety records across your entire contracting organization. Finally, you demand high equipment utilization across multiple distinct projects. Modular designs deliver all three critical outcomes. They eliminate the guesswork from temporary structures. They transform access solutions from an unpredictable craft into a measurable, repeatable manufacturing process applied directly on your active job site.
The defining feature of any modular setup remains its fixed node connections. Vertical standards feature pre-welded attachment points positioned at strictly standardized intervals. These intervals typically occur exactly every 0.5 meters along the vertical tube. Manufacturers use specialized nodes, rosettes, or cups to create these critical junction points. This design entirely eliminates the sliding friction clamps used in older manual methods.
Ledgers and braces represent the primary horizontal and diagonal members of the framework. They arrive on your site in pre-measured, completely fixed lengths. Each piece features specialized end-fittings welded directly at the factory. These precision fittings guarantee perfect right angles during the field assembly phase. They completely eliminate the need for manual measuring or leveling tools on-site. You never have to guess the correct span distance between posts.
Connections secure firmly via captive wedge or lock mechanisms. Erectors hammer captive wedges or locking cups directly into the vertical node slots. This physical action creates a highly rigid, moment-resisting joint. The wedge design utilizes simple friction and gravity to lock the node permanently. You never have to worry about losing small bolts or dropping loose nuts during complex overhead assembly. This streamlined hardware directly accelerates the building pace.
The fixed characteristics of these structural components create a brilliant self-aligning geometry. The structure automatically plumbs and squares itself as workers build upward layer by layer. This auto-alignment drastically reduces dangerous erection errors. It ensures vertical loads transfer directly down the standards exactly as engineers originally intended.
Best Practices: Always strike the wedge with a standardized scaffolding hammer to ensure optimal seating without damaging the steel head.
Common Mistakes: Forcing a horizontal ledger into a node when the vertical standard is visibly out of plumb. You must level the base first.
The standard self-aligning erection process typically follows these structured steps:
Place heavy-duty base jacks on stable ground to establish a perfectly level foundation.
Insert the foundational vertical standards directly into the base collars.
Connect the primary horizontal ledgers to the lowest node points to form a solid base square.
Tap the captive wedges with a standard hammer to lock the 90-degree angles automatically.
Attach precise diagonal braces across the bays to square the entire structural geometry.
Repeat the process upward, relying on the fixed 0.5-meter nodes to maintain perfect level alignment.
Component lengths and connection angles remain strictly fixed in engineered modular designs. Because of this rigid uniformity, engineers can calculate highly precise load distributions. You can confidently deploy these structures for extreme heavy-duty industrial applications. They comfortably support intensive masonry work, bulk material storage, or heavy concrete shoring. You receive verifiable, tested load data directly from the manufacturer. This hard data removes the structural ambiguity previously associated with temporary falsework installations.
Modern systems naturally accommodate strict safety compliance integration. Global safety regulations continually demand better fall protection systems. These engineered frameworks integrate seamlessly alongside essential safety add-ons. You can quickly install standard toeboards, safety guardrails, and modular stair towers. Erectors accomplish this without requiring bespoke rigging or custom steel fabrication. The system already features dedicated connection points for these exact accessories. This integration ensures site managers pass rigorous safety inspections without relying on last-minute field modifications.
The interlocking nature of the structural nodes provides superior resistance to external dynamic forces. They absorb and distribute sudden lateral forces highly efficiently. The rigid wedge joints strongly resist high wind loads common on high-rise commercial projects. They also dampen heavy industrial vibrations generated by nearby machinery. This dynamic resistance effectively prevents joint loosening over extended deployment periods.
We can summarize the performance shift using a basic comparison chart detailing why engineered frameworks outperform manual methods:
Performance Feature | Traditional Tube & Clamp | Modular Scaffolding System |
|---|---|---|
Load Predictability | Low (depends entirely on manual clamp torque) | Extremely High (guaranteed by fixed geometries) |
Erection Speed | Slow (requires constant manual leveling) | Fast (utilizes self-aligning components) |
Joint Rigidity | Moderate (highly vulnerable to sliding forces) | High (utilizes moment-resisting captive wedges) |
Compliance Integration | Manual, bespoke additions required | Plug-and-play modular safety accessories |

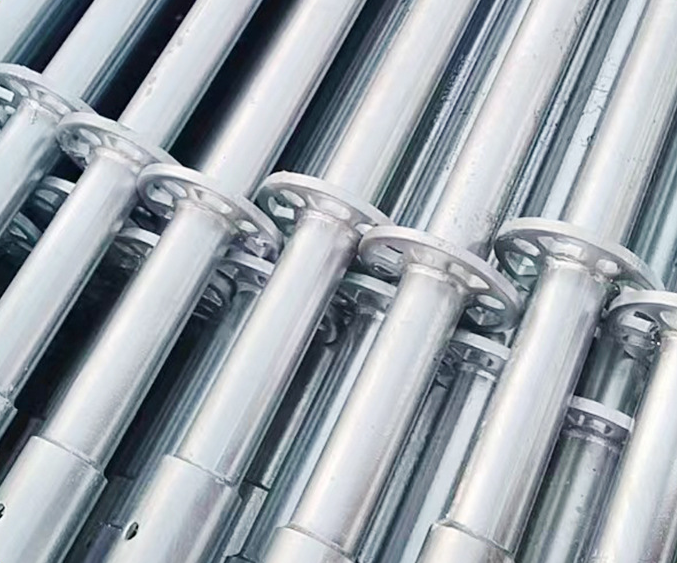

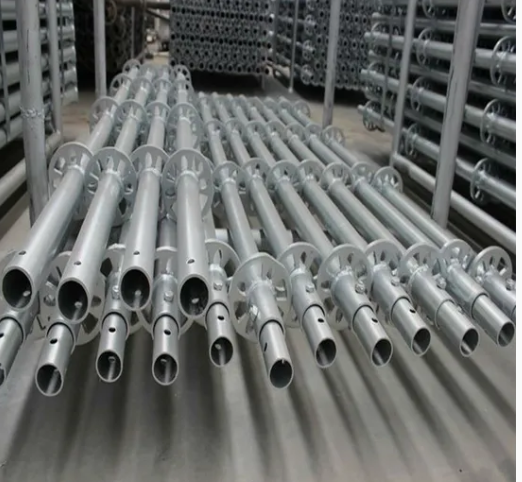

When evaluating modern modular options, one specific structural design stands out globally. The highly engineered 8-point rosette defines the core identity of a Ringlock Scaffolding System. This central circular node permits up to eight separate connections simultaneously. You can seamlessly attach four horizontal ledgers and four diagonal braces onto a single rosette plane. This central concentration of structural forces gives the entire system incredible overall strength and versatility.
This unique rosette design delivers unmatched multi-directional adaptability. Older H-frame systems struggle immensely outside of straight, flat building facades. A Ringlock setup effortlessly handles complex circular structures. You can wrap it precisely around curved storage tank facades, industrial boilers, or complex offshore oil rigs. The smaller holes located on the rosette permit variable angle attachments. This brilliant feature unlocks vast geometric possibilities for engineers planning difficult site access routes. The system adapts perfectly to awkward architectural shapes without ever compromising the underlying stability.
Premium manufacturers typically produce these exact components using strict high-tensile material standards. High-strength steel grades, particularly Q345, dominate modern production lines. This superior steel composition allows for incredibly high load capacities. Simultaneously, it maintains a significantly lighter overall component weight compared to older mild steel pipes. Lighter pieces drastically reduce worker physical fatigue on site. They also accelerate the entire erection timeline, directly improving overall project profitability.
Best Practices: Always prioritize Q345 steel variants when planning access builds exceeding 30 meters in height to maintain optimal weight-to-load ratios.
Common Mistakes: Attempting to force a horizontal ledger wedge into a small rosette hole designed specifically for diagonal braces. Always match the wedge head profile to the correct rosette slot.
Buyers must look far beyond the basic connection type when sourcing new equipment. You must thoroughly investigate the actual underlying steel specifications. Always specify strict minimum wall thicknesses when requesting initial supplier quotes. Typically, heavy industrial applications require structural steel tubes with at least a 3.2mm wall thickness. Demand verifiable steel grade certificates directly from your chosen supplier. Thin-walled steel severely limits your structural load capacity and dramatically shortens the functional equipment lifespan.
Assess the chosen corrosion protection process rigorously. Hot-dip galvanizing remains absolutely mandatory for true equipment longevity. Manufacturers measure this vital zinc coating in precise microns. Standard industry acceptable levels usually sit around 60 to 80 microns. This thick coating completely protects the steel inside and out against harsh marine or freezing winter weather environments. Cheap electro-plating simply cannot provide sufficient elemental defense for long-term outdoor deployment.
Reliable systems always feature robust manufacturing traceability. Look carefully for physically stamped components on every vertical standard and heavy ledger. These hard metal stamps should detail the specific manufacturing batch, the production year, and the corporate brand identity. You will absolutely need these exact details for future liability checks and strict safety compliance audits. Traceability proves you purchased engineered assets, not unverified steel tubes.
Finally, procurement teams must address the dangerous industry reality regarding cross-brand compatibility risks. Many generic systems look completely identical on the surface. However, mixing components from different manufacturers immediately voids your official engineering certifications. Minute differences in wedge tolerances, steel hardness, or rosette dimensions create unseen structural stress points. You must never mix equipment brands unless an independent structural engineer explicitly tests and approves the specific hybrid combination. Treat your inventory as a strict closed ecosystem.
Follow this essential criteria checklist before finalizing a supplier:
Verify the precise steel grade (e.g., Q345) and demand certified wall thickness documentation.
Confirm the hot-dip galvanizing process consistently exceeds the minimum 60-micron threshold.
Check for clear, permanent stamped batch numbers on all primary load-bearing members.
Request extensive documentation proving component compatibility if expanding an already existing fleet.
Insist on comprehensive third-party testing reports from recognized global engineering laboratories.
Evaluating specific technical features ultimately leads directly to better overarching business outcomes. Transitioning to advanced modular designs delivers significantly faster site turnarounds. It standardizes critical safety protocols across your entire labor workforce. It also provides a highly durable, versatile equipment asset that serves multiple project types. The right structural framework flawlessly aligns engineered geometry directly alongside your specific demanding project requirements. You essentially purchase predictable site performance.
You must ensure the physical components precisely match the promised manufacturer specifications before deployment. Encourage your procurement teams to request robust third-party load test certifications from any potential supplier. Always ask for highly specific material data sheets before you finalize your vendor shortlist. These actionable next steps guarantee your equipment performs exactly as engineered, ultimately safeguarding both your site personnel and your valuable project timelines.
A: System scaffolding uses pre-engineered lengths and fixed connection nodes for fast, standardized assembly. Workers lock components into place without manually measuring spans. Tube-and-clamp setups rely on loose pipes and individual fittings. They require intensive manual measurement, leveling, and highly skilled tightening to remain structurally safe.
A: No. Horizontal members, known as ledgers, come in pre-manufactured, fixed lengths. Manufacturers design them this way to maintain the overall structural integrity. Fixed lengths guarantee the predetermined geometry of the bay, ensuring the entire structure squares itself automatically during the vertical assembly process.
A: Generally, no. Components like Ringlock rosettes might appear visually identical across brands. However, invisible differences in steel grade, wall thickness, and wedge tolerances exist. Mixing parts can immediately compromise structural integrity and void official safety certifications. Always consult a structural engineer before attempting to mix equipment fleets.
A: Ringlock utilizes a central flat rosette that allows for up to eight connections at variable angles. This design offers superior flexibility for wrapping around complex shapes. Cuplock uses a central node featuring a top and bottom locking cup. The Cuplock design is typically limited to four rigid right-angle connections.
