Transitioning to a new scaffolding system represents a massive capital expenditure for any business. For commercial and industrial construction, your choice directly dictates labor efficiency, site safety, and ongoing operational costs. You simply cannot afford to guess when structural integrity is on the line. While traditional systems often suffice for basic, low-rise elevations, modern building environments demand much more. Complex architectural geometries and strictly enforced safety regulations require highly adaptable and resilient frameworks. Rigid frames routinely fail to keep pace in these aggressive, fast-paced environments.
This comprehensive guide provides a highly practical framework for evaluating modern modular structures based on technical specifications, implementation realities, and verifiable supplier metrics. By following these exact steps, you will learn how to assess steel quality confidently, compare competing platforms side-by-side, and properly vet your manufacturing partners before issuing a purchase order.
Labor vs. CapEx: Ringlock scaffolding requires a higher initial investment but significantly reduces erection and dismantling times, optimizing overall labor costs.
Material Quality is Non-Negotiable: Evaluating steel grade (e.g., Q345/Q235) and hot-dip galvanization thickness is critical for calculating system lifespan and load-bearing safety.
Compliance Drives Procurement: Shortlist only systems that provide transparent, third-party testing data complying with regional standards (e.g., OSHA, EN 12810/12811).
Supplier Capabilities: A reliable manufacturer must offer batch traceability, engineering support, and consistent component compatibility.

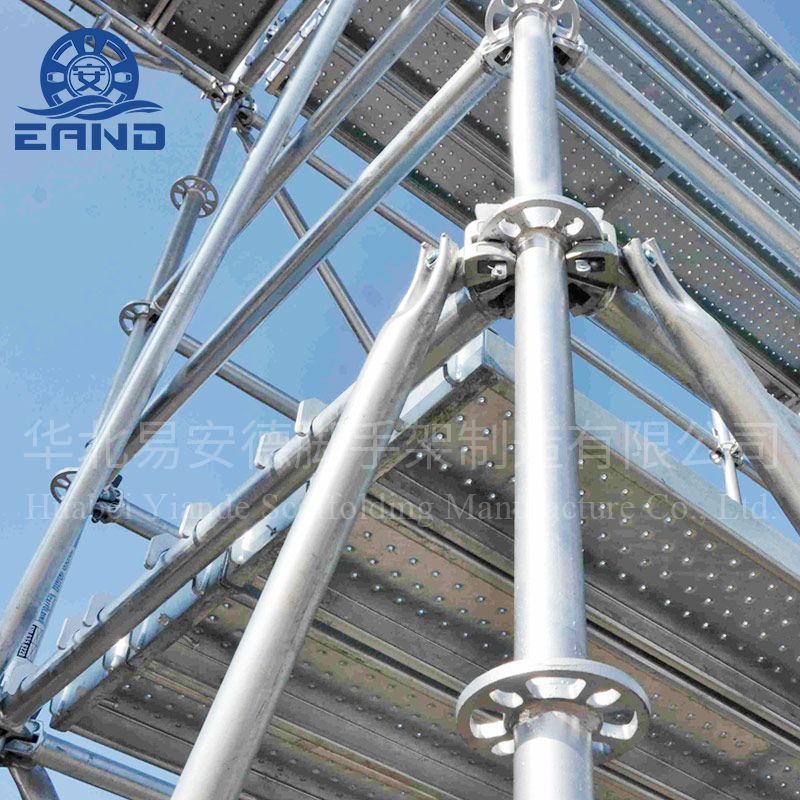

Modern architectural designs rarely feature perfectly flat facades or simple square footprints. Project managers frequently encounter circular tanks, angled walls, and suspended work areas. A primary advantage of Ringlock Scaffolding lies in its node connection flexibility. The central rosette allows up to eight independent connections at varying angles. This unique geometry effortlessly accommodates curved buildings and intricate industrial installations. You can bypass the inherent limitations of rigid frame scaffolding. Frame systems struggle immensely on uneven terrain or irregular structures, forcing crews to build unsafe, custom workarounds. A modular rosette system easily conforms to the exact shape of your site.
Labor costs consume a massive portion of any construction budget. By optimizing how fast your teams can assemble and tear down a structure, you drastically improve profit margins. The integrated wedge-lock mechanism completely eliminates the need for manual clamp tightening. Workers simply slide the ledger head over the rosette and strike the wedge pin into place. This predictable assembly sequence sharply reduces your dependency on highly specialized scaffolding crews. General laborers can quickly master the sequence. They achieve consistent, safe connections faster than they would using traditional bolted fittings.
Industrial applications demand uncompromising structural integrity. Heavy machinery, dense materials, and large work crews place immense stress on temporary structures. The rosette design facilitates centralized weight distribution. When load forces travel down the vertical standards, the node effectively transfers weight without creating dangerous shear points. This inherent stability makes the system highly suitable for heavy-duty industrial applications, critical concrete shoring, and high-altitude masonry projects. It provides a rigid, sway-free platform under extreme loads.
Both systems dominate the modular scaffolding market, but their locking mechanisms create distinct operational differences. The connection speed of a Ringlock Scaffolding System relies on a simple hammer strike on a wedge pin. Conversely, Cuplock uses a rotating top cup to lock multiple ledger blades simultaneously. While Cuplock works well, its rotating cup remains highly susceptible to jamming. Wet concrete, plaster, and dirt frequently lock the cup in place, causing frustrating delays during dismantling. Furthermore, the wedge-based rosette offers unmatched versatility. It allows diagonal bracing at precise angles. Cuplock functions beautifully for straight, rigid lines, but it struggles to match rosette-based systems on complex geometries.
Tube and clamp scaffolding provides ultimate freedom, but it sacrifices massive amounts of time. Efficiency metrics show a wedge-lock system reduces assembly time by up to 50% compared to traditional tube and clamp methods. Every single connection in a tube system requires a worker to manually measure, position, and tighten a threaded clamp. This slow process drastically increases human error. Systematized components inherently force standardization. They eliminate the guesswork involved in joint spacing and load calculations. You gain speed and mathematical predictability simultaneously.
Procurement teams often balk at the initial price tags of high-end modular equipment. However, comparing upfront procurement costs in isolation presents a flawed picture. You must weigh the initial spend against lifecycle longevity and per-project labor savings. Hot-dip galvanized systems resist rust for decades, eliminating replacement cycles. Additionally, shaving days off erection and dismantling schedules compounds into massive labor savings over a multi-year period.
System Comparison Chart
Feature/Metric | Ringlock | Cuplock | Tube & Clamp |
|---|---|---|---|
Connection Mechanism | Wedge pin & Rosette | Rotating Top Cup | Manual Threaded Clamp |
Debris Jamming Risk | Extremely Low | Moderate to High | Low (but easily stripped) |
Erection Speed | Very Fast | Fast | Slow |
Geometric Versatility | High (8 connections) | Moderate (4 connections) | Maximum (Infinite angles) |
Not all steel performs equally under stress. Evaluating the underlying metallurgy forms the foundation of smart procurement. Reputable manufacturers utilize High-Strength Low-Alloy steel for their most critical components. Typically, they use Q345 steel for vertical standards. These vertical tubes bear the brunt of the compressive forces. For horizontal ledgers, Q235 steel provides the necessary flexibility and yield characteristics. You must also verify the exact wall thickness. A standard wall thickness of 3.2mm remains crucial. Some suppliers subtly thin the walls to 2.8mm or 3.0mm to cut costs. This deceptive practice heavily impacts overall weight limits and severely compromises load ratings.
The junction where the rosette meets the vertical tube represents the most critical stress point. You must evaluate whether the manufacturer uses automated robotic welding or relies on manual welding techniques. Robotic welding guarantees continuous, deeply penetrated beads without dangerous air pockets. Manual welding often introduces human inconsistency. Ask your supplier for comprehensive destructive testing data. They should willingly provide shear strength reports and node rigidity analysis. If they cannot prove the physical breaking point of their welded nodes, you should find another partner.
Corrosion acts as the silent destroyer of construction equipment. You will encounter various finish options, including painted, electro-galvanized, and hot-dip galvanized. Hot-dip galvanization immerses the steel inside molten zinc, creating a metallurgical bond rather than a simple surface coat. This process coats both the inside and outside of the tubes. You must strictly evaluate the zinc coating thickness. High-quality systems require minimum micron specifications to guarantee corrosion resistance. In harsh weather, high humidity, or aggressive marine environments, inadequate surface treatments will cause structural failure within a few short years.
What to Watch Out For:
Suppliers blending lower-grade Q235 steel into vertical standard batches.
Thin, uneven zinc coatings that flake off after the first hammer strike.
Spatter and slag left around the rosette nodes, which prevents ledgers from seating properly.
Transitioning into modular platforms requires tighter inventory protocols. While the wedge pins typically remain captive inside the ledger heads to prevent dropping, you still face the risk of losing small ancillary components. Managing varied ledger lengths, diagonal braces, and base collars requires strict logistical oversight. If you simply throw parts into a shared yard bin, your crews will waste hours searching for specific sizes on the job site.
Best Practices for Inventory Control:
Implement a color-coding system based on ledger length. Spray-paint the tips of components before deployment.
Utilize dedicated steel stillages and racking systems rather than loose wooden crates.
Conduct mandatory part audits during the dismantling phase before trucks leave the site.
Even the most intuitive systems face initial friction. You must anticipate overcoming resistance from crews accustomed to legacy systems. Veteran workers often prefer familiar tools and methods, even if they run slower. Address this by hosting hands-on demonstrations. Emphasize how the wedge-locking sequence saves their physical energy. You must implement standardized safety protocols immediately. Teach them the proper hammer technique to secure the wedge pins without damaging the ledger heads. Once they trust the stability of the locked nodes, their installation speed will naturally multiply.

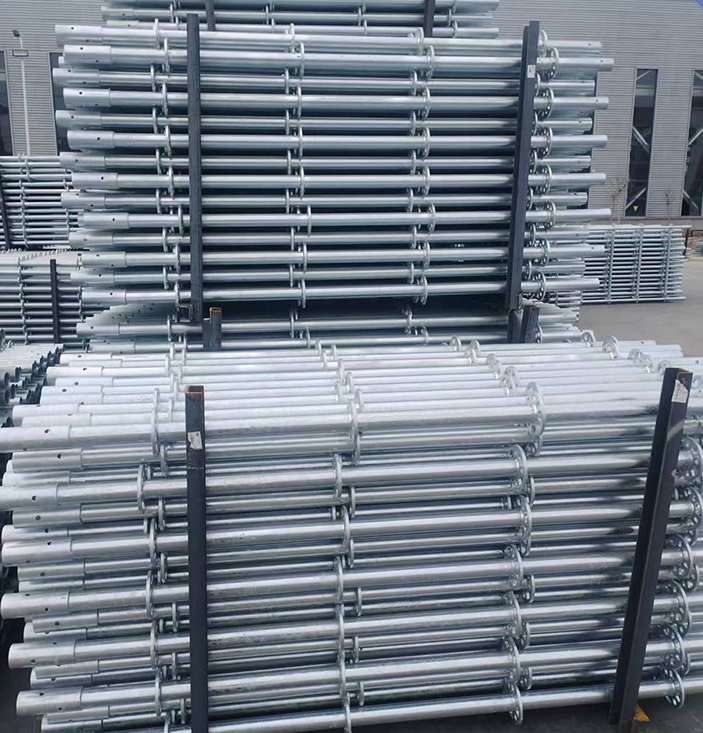

Do not ignore the logistical footprint of your equipment. Bulky, welded frame systems consume massive amounts of empty air when stacked. You end up paying to ship empty space. Modular parts break down into linear tubes. Calculating yard space and freight efficiency reveals a significant hidden advantage. Linear components stack tightly inside flatbed trucks and shipping containers. You can transport significantly more square footage of scaffolding per truckload. This density slashes freight costs and maximizes limited staging areas on tight urban construction sites.
Marketing brochures easily fabricate quality claims. You must strip away the marketing layer and demand independent audit reports. Look for active certifications from globally recognized testing bodies like SGS or TUV. Ensure you secure compliance certificates aligning with your regional authority. In North America, OSHA and ANSI standards are absolute legal minimums. For European and international projects, EN 12810 and EN 12811 compliance demonstrates a highly refined engineering standard. Never accept a factory's internal testing certificate as the sole proof of safety.
If a component cracks under load, you need to know exactly when it was produced and what metal went into it. Material traceability separates elite manufacturers from bulk commodity brokers. Check for distinct heat numbers or batch stamping embedded directly onto the base plates or rosettes. Request documented raw material mill certificates. These documents prove the factory actually purchased the high-grade steel they claim to use. Without batch stamping, you face an impossible task trying to isolate a defective production run.
A supplier might produce excellent prototypes, but can they handle your scale? You must accurately assess the supplier's true production capacity. Construction schedules run on tight, unforgiving deadlines. If you win a major infrastructure bid, you need a partner capable of delivering large-scale orders on time. Delays in receiving critical replacement parts or expansion bays create massive project-delaying bottlenecks. Tour their facility, either physically or via live video, to verify their actual robotic welding lines and galvanizing pools.
Off-the-shelf parts solve standard problems, but major projects always throw curveballs. The best manufacturers act as technical partners, not just metal benders. Determine the availability of their in-house engineering team. Can they provide detailed 3D modeling and structural load calculations for your specific site footprint? Complex cantilevered drops or suspended platforms require custom component design. A supplier lacking an engineering department forces you to hire costly third-party structural engineers for every unique project challenge.
Upgrading your elevated work platforms requires a balanced, highly strategic approach. You must look far beyond the initial purchase price to evaluate long-term safety, daily labor efficiency, and raw material durability. Prioritizing transparency in steel quality and insisting on independent, third-party certifications safeguards your business against catastrophic failures. When finalizing your procurement decision, build a partnership with a supplier who offers full material traceability, robust engineering support, and an unyielding commitment to automated manufacturing standards. Doing so transforms a heavy capital expense into a reliable, profit-driving asset for decades to come.
A: Mixing components from different manufacturers is highly dangerous and strongly discouraged. Even if parts appear visually identical, slight variations in rosette thickness, wedge pin angles, and steel yield strength exist. Mixing parts destroys the mathematical load tolerances of the structure. It also completely voids manufacturer warranties and leaves your company liable for any site accidents or safety standard violations.
A: A high-quality, hot-dip galvanized system typically lasts 10 to 15 years, and often longer under good conditions. This lifespan remains highly contingent on proper maintenance, organized storage, and the original thickness of the zinc coating. Regular inspections to identify and replace severely dented tubes or bent wedge pins will easily maximize the longevity of your asset.
A: No specialized power tools or heavy wrenches are necessary. A standard scaffolding hammer is typically the only tool required to secure the wedges. A worker simply strikes the captive pin into the rosette slot to lock the joint tightly. This minimal tool requirement significantly drives labor efficiency and prevents dropped-tool hazards on active construction sites.
