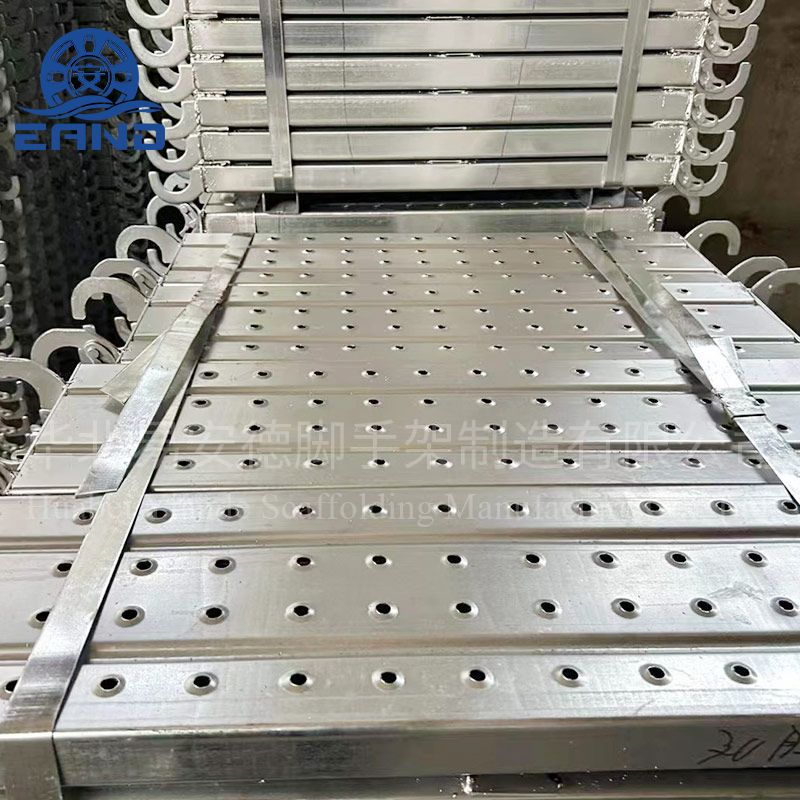

Ringlock Standard, Ledger and Brace: How the Main Scaffold Parts Work Together

Upgrading scaffolding inventory for a mega-project demands careful balancing. You must weigh upfront procurement costs against long-term labor efficiency and strict safety compliance. Choosing the modular system dictates the entire project momentum. The structural integrity and ROI of a Ringlock system rely entirely on precise geometric interaction. Its vertical, horizontal, and lateral components must fit together perfectly. When they align, they create an incredibly strong, vibration-resistant framework. Poorly matched parts cause severe assembly delays and pose extreme safety risks.

This guide breaks down the complex engineering behind the primary scaffold components. We will examine the vertical support, the horizontal runner, and the lateral stabilizer. You will learn specific technical evaluation criteria to assess manufacturing quality. We also cover load distribution physics and dimensional tolerances. Procurement and safety teams can use this detailed information to make evidence-based supplier decisions.

Key Takeaways

• Node Efficiency: The Ringlock system's central rosette design allows up to eight connections simultaneously, drastically reducing assembly time compared to traditional tube-and-clamp setups.
• Load Distribution: The ringlock scaffold standard handles vertical compressive loads, while the Ringlock ledger and Ringlock diagonal brace manage horizontal bending and lateral shear forces, creating a rigid three-dimensional grid.
• Procurement Standard: High-quality systems must feature Q345 (or equivalent) high-yield steel and compliant hot-dip galvanization to ensure reliable performance under maximum load thresholds.
• Implementation Reality: Minor manufacturing defects in wedge pins or rosette welding can compromise the entire structural matrix, making rigorous supplier QA auditing critical.

The Anatomy of Ringlock: Deconstructing the Core System

Establishing a baseline understanding clarifies how the primary components interact. The system operates as a unified structural matrix. Every individual piece plays a specific functional role in maintaining stability.

The Ringlock Scaffold Standard (Verticals)

This component acts as the load-bearing backbone of the entire scaffold structure. It handles all downward vertical compressive forces safely. The design features thick welded rosettes typically spaced every 500mm along the tube. These circular rosettes serve as the primary connection nodes for all other parts. A high-grade ringlock scaffold standard prevents structural buckling under immense pressure.

When evaluating these verticals, look closely at the steel tube wall thickness. Most high-quality standards utilize 3.2mm or 3.0mm steel tubes. Steel grade matters immensely for structural integrity. High-yield Q345 steel provides superior load-bearing capacity compared to softer metals. You must also evaluate the precision of the spigot. The spigot forms the crucial end-to-end connection point between two stacked verticals. A loose or poorly manufactured spigot creates dangerous swaying on tall builds.

The Ringlock Ledger (Horizontals)

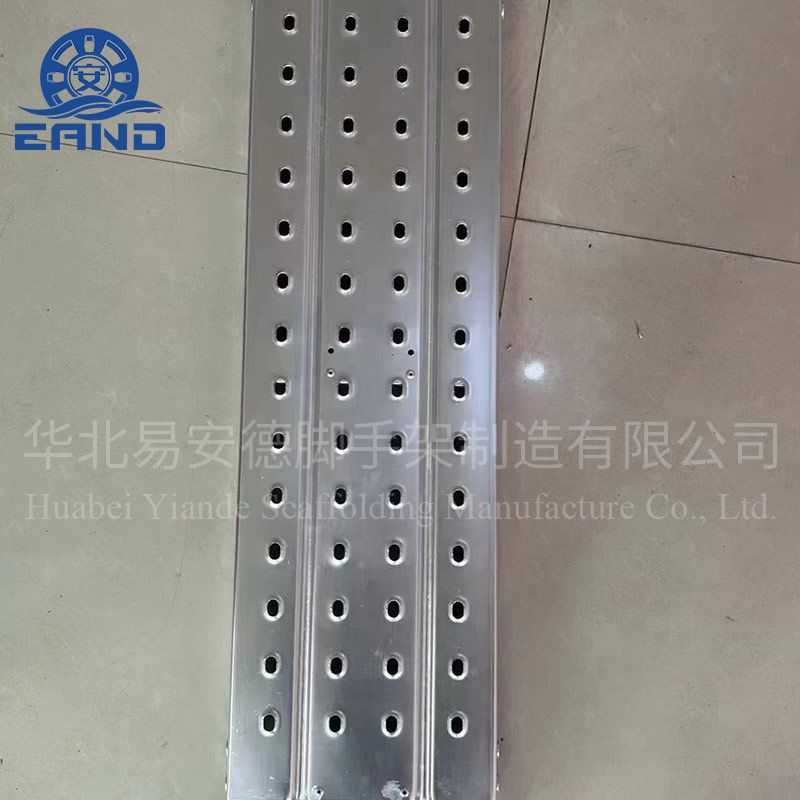

This horizontal element provides essential lateral support for platform boards. It also acts as a secure guardrail to protect workers from falls. The component is built with specialized cast steel ledger heads at both ends. These heavy-duty heads contain captive wedge pins. They slot directly into the small holes of the standard's rosette.

Every Ringlock ledger unit requires careful inspection before purchase. You must evaluate the ledger head casting quality closely. Forged steel heads generally outperform standard cast heads under heavy bending stress. Check the internal pin retention mechanisms too. Captive pins should stay securely housed inside the head during rough transport. Dropped or missing pins cause massive assembly delays on busy construction sites.

The Ringlock Diagonal Brace

Lateral stability prevents catastrophic structural collapse. This component prevents dangerous sway and structural twisting under wind loads. It features specialized brace heads equipped with heavy-duty wedges. These wedges connect precisely to the larger holes located on the rosette.

Manufacturers must cut these braces to exact mathematical lengths. A brace even slightly out of tolerance will fail to lock correctly. The Ringlock diagonal brace requires precise geometry to function. If the length deviates by just a few millimeters, the wedge refuses to drop. This halting problem stops assembly entirely and wastes expensive labor hours.

The Rosette Node: How These Three Parts Transfer Load

Understanding the physics of the connection helps teams trust the structure. The engineering behind the rosette node defines the system's true structural genius. It eliminates the guesswork found in older scaffolding frameworks.

The 8-Way Connection

The central rosette accommodates up to eight separate connections simultaneously. A single node accepts four ledgers at perfect 90-degree right angles. It also accepts four diagonal braces intersecting at varying functional angles. They all lock in tightly without obstructing each other. This geometry eliminates the need for bulky traditional tube-and-clamp fittings. It drastically speeds up the erection process on complex industrial sites.

Force Distribution

Force distribution relies entirely on friction and advanced geometry. The wedge pin mechanism creates a highly rigid, vibration-resistant joint. Striking the wedge pin with a hammer drives it downward through the rosette. This wedging action converts a simple hammer-blow force into an incredibly tight friction grip. The ledger head securely clamps against the standard tube. It seamlessly transfers lateral shear loads safely back to the core vertical standard.

Safety Compliance

This specific node geometry meets rigorous global load-bearing requirements. Properly seated nodes comply with strict EN 12810 and EN 12811 standards. They also satisfy comprehensive OSHA scaffolding regulations in North America. Scaffolders rely on this tight geometric fit to prevent structural failure. It safely manages heavy live loads from workers, bricks, and concrete equipment.

Component Design Comparison: Ringlock vs. Cuplock

Buyers often struggle to choose between dominant modular systems. Comparing their component interplay clarifies the decision and highlights operational differences on the job site.

Node Locking Mechanism

Node locking mechanisms differ heavily between the two frameworks. Ringlock requires workers to hammer individual wedge pins into place. This allows them to secure one horizontal ledger independently of the others. Cuplock relies on rotating a single threaded top cup. This top cup drops down over ledger blades to lock multiple horizontals simultaneously. While Cuplock seems faster initially, it lacks the independent adjustment capability of the rosette design.

Component Flexibility

Component flexibility heavily favors the angled rosette design. You can easily build complex, circular, or highly irregular footprints. The rosette accommodates various angles effortlessly to wrap around curved tanks or industrial boilers. Cuplock generally restricts builders to rigid 90-degree grid formats. Adapting Cuplock to curved facades requires excessive external bracing and custom fittings.

Maintenance Realities

Evaluating long-term maintenance realities reveals distinct longevity differences. Ringlock features captive wedge pins attached directly to the ledger head. They require minimal maintenance beyond occasional cleaning. Cuplock uses threaded top cups on every vertical standard. These fine threads frequently jam with dried concrete, plaster, or heavy rust. Jammed cups force workers to waste valuable time breaking them free with heavy hammers.

System Capability Reference Chart

Evaluating System Specifications for Procurement

Procurement teams must demand exact specifications from scaffolding manufacturers. Strict diligence ensures both site safety and long-term component longevity.

Material Quality

Material quality dictates the baseline performance of the entire structure. You must insist on high-tensile steel for primary structural parts. The vertical support relies on Q345 grade steel to maximize the strength-to-weight ratio. Standard carbon steel like Q235 bends too easily under heavy compressive stress. High-yield steel ensures the structure handles massive vertical loads safely.

Corrosion Protection

Corrosion protection extends inventory life dramatically. You should evaluate Hot-Dip Galvanization (HDG) thickness very carefully. Quality zinc coating prevents dangerous structural rust in harsh marine or industrial environments. Pay close attention to inner-tube coating coverage. Exterior visual finishes mean nothing if the inside tube rusts away invisibly.

Dimensional Tolerances

Dimensional tolerances require almost microscopic manufacturing precision. Micro-millimeters matter greatly when erecting a hundred-meter tall scaffold. Suppose the ledger head angle deviates by just one single degree. The wedge pin will resist smooth insertion. Workers will use excessive hammer force to lock it down. This causes premature wear, damages the central rosette, and triggers severe assembly delays.

Consider these common best practices during the evaluation stage:

• Request certified material mill test reports verifying Q345 steel.
• Measure HDG thickness to ensure it meets strict EN ISO 1461 standards.
• Test a random sample of wedge pins for smooth, frictionless insertion.
• Verify rosette spacing is exactly 500mm across all vertical batches.

Implementation Risks and Supplier Shortlisting Logic

Procurement mistakes carry heavy financial and physical consequences. Knowing exactly what goes wrong helps you prevent catastrophic site failures.

The Mixing Threat

The mixing threat poses a massive risk to structural integrity. Never mix modular components from different unauthorized manufacturers. Even slight variations in rosette plate thickness alter the joint geometry. A mismatched wedge shape prevents full structural engagement. This dangerous mixing instantly voids official structural load charts. It transfers total liability directly to your safety management team.

Welding Quality

Welding quality acts as the ultimate safety net for workers. The rosette-to-standard weld represents the most critical potential failure point. A weak, porous weld shears off entirely under heavy live loads. Buyers must demand documented automated or robotic welding certifications. Manual hand-welding introduces too much dangerous human error into mass-produced components.

Take these logical next-step actions when vetting a new supplier:

1. Ask for comprehensive third-party load testing reports mapped to EN 12811.
2. Request uncut factory audit videos showing automated robotic welding stations.
3. Review their internal material test certificates for specific steel grades.
4. Demand a small physical sample kit to test dimensional tolerances manually.

Conclusion

The safe deployment of complex scaffolding relies entirely on precision manufacturing. The standard, ledger, and brace must interact flawlessly to distribute heavy loads. You cannot compromise on these strict structural tolerances. A rigid three-dimensional grid protects workers and speeds up industrial projects.

Base your procurement decisions on hard technical evidence. Do not judge suppliers solely by the raw price per ton. Documented material grades and robotic welding consistency matter far more for operational efficiency. Strict adherence to international safety standards protects your workers and your liability.

Take immediate action before finalizing any major bulk orders. Request structural load charts from fully vetted manufacturers. Ask for a sample component kit delivered to your yard. Conduct physical tolerance tests on your own site. This hands-on validation ensures your next build remains safe, compliant, and highly efficient.

FAQ

Q: What is the standard distance between rosettes on a Ringlock scaffold standard?

A: The industry standard distance between rosettes is exactly 500mm. This uniform spacing dictates safe platform heights and ensures predictable load transfer. It allows scaffolders to place horizontal supports at half-meter intervals, easily accommodating varying building facades and worker access requirements.

Q: Can a Ringlock diagonal brace be installed at any angle?

A: While the multi-directional rosette offers great flexibility, braces cannot go just anywhere. Manufacturers design them to specific lengths. These exact lengths match predetermined bay widths and lift heights. Installing a brace correctly requires matching it to the intended geometric grid.

Q: Are all Ringlock ledger heads and wedge pins identical?

A: No. Components vary significantly between manufacturers. Some use cast steel heads, while others prefer forged steel for higher durability. Wedge pin tapers also differ. You should never assume cross-brand compatibility, as mismatched parts can weaken the joint and void safety certifications.

Q: How do I verify the load capacity of these components?

A: You should request formal ISO certifications directly from the manufacturer. Ask for comprehensive third-party lab testing data. Ensure their structural load charts map directly to EN 12811 or local OSHA standards. Reliable suppliers readily provide these verifiable engineering documents.
