Component-level mechanics are critical when engineering system scaffolding for high-capacity projects. Industrial and commercial builds rely entirely on precise load management. They require robust frameworks to keep workers safe and projects on schedule. Unfortunately, many contractors misunderstand the distinct load-bearing responsibilities of horizontal and diagonal components. This knowledge gap often leads to compromised structural integrity. It triggers severe OSHA or EN compliance failures. It also wastes valuable materials during assembly.
We will provide a rigorous, evidence-based breakdown of how these specific components function. You will learn exactly how a Ringlock ledger and a ringlock diagonal brace transfer loads together. We will explore how they dictate overall system safety and node rigidity. This guide empowers procurement teams to make highly informed decisions. It helps site managers optimize their structural layouts for ultimate stability and safety.
The ledger serves as the fundamental horizontal building block in modular scaffolding. It establishes the precise bay length and width for the entire structure. Site engineers calculate scaffolding dimensions by selecting specific ledger lengths. These horizontal tubes connect directly between vertical standards. They create a grid-like footprint on the ground.
Ledgers function as the primary seating component for steel scaffolding planks. They bear the direct weight of workers, heavy tools, and stacked construction materials. This means they handle massive live and dead loads simultaneously. A standard Ringlock ledger must resist intense downward bending forces. Quality manufacturing ensures they do not deflect under these point loads.

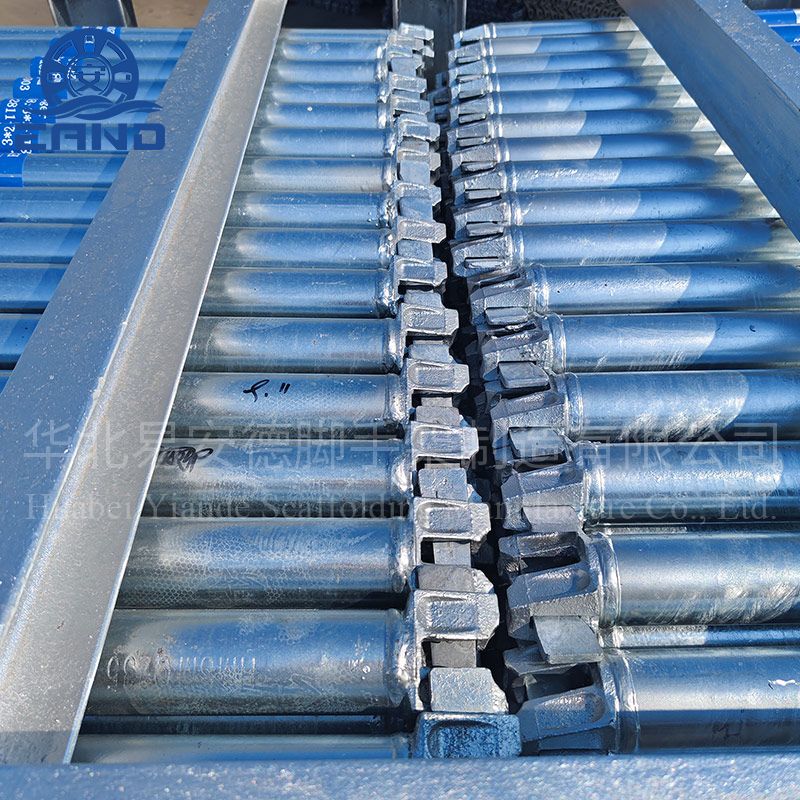

The connection mechanism is equally important. Each ledger features a welded cast-steel head housing a captive wedge pin. Workers slide this head over the rosette on the vertical standard. They then hammer the wedge pin into place. This action creates a secure, highly rigid, right-angle connection. It locks the horizontal framework into the vertical supports seamlessly.
While ledgers manage gravity, the scaffold needs protection against horizontal movement. The ringlock diagonal brace provides this critical lateral stability. It connects rosettes across different elevations. This diagonal placement transforms rectangular bays into a rigid, triangular truss pattern. Triangulation is a core engineering principle for building stable structures.
This component dictates the spatial geometry of the entire scaffold structure. Ledgers alone cannot stop a scaffold from leaning or twisting. Lateral forces push against the side of the bay. The diagonal brace counteracts these forces immediately. It prevents racking, where the square scaffold frame distorts into a parallelogram. Proper bracing ensures the vertical standards remain perfectly plumb.
Component Load Responsibility Matrix
| Component Name | Primary Load Managed | Force Direction | Critical Structural Function |
|---|---|---|---|
| Ledger | Live and Dead Loads | Vertical (Downward) | Platform support and bay sizing |
| Diagonal Brace | Dynamic and Wind Loads | Lateral and Diagonal | Sway prevention and frame triangulation |
| Rosette Node | Combined Stresses | Multi-directional | Force transfer into vertical standards |
Load transfer begins the moment a worker steps onto the scaffold platform. Planks distribute this weight outward onto the supporting ledgers. A Ringlock ledger acts as a beam resisting bending moments. It transfers this vertical pressure directly into the vertical standards through the wedge connection.
The standards then carry this load downward to the base jacks. This vertical pathway relies on the ledgers remaining perfectly horizontal. If a ledger bows under excessive weight, the load path shifts dangerously. Engineers calculate the maximum allowable uniformly distributed load for these horizontal components. They ensure the downward force never exceeds the component's shear strength.
Scaffolds rarely exist in perfectly static environments. They face constant dynamic challenges. High winds exert massive lateral pressure against the structure. Workers moving across the platform create shifting dynamic forces. Seismic vibrations can also rattle the entire assembly. A ringlock diagonal brace absorbs these external shocks.
The physics are straightforward but vital. When wind pushes a scaffold bay sideways, it stretches the diagonal brace on one side. This subjects the brace to tension. Simultaneously, it compresses the brace on the opposite side. The brace safely absorbs both tension and compression. It stops lateral sway instantly. Without these diagonal members, the horizontal connections would simply snap under the racking stress.

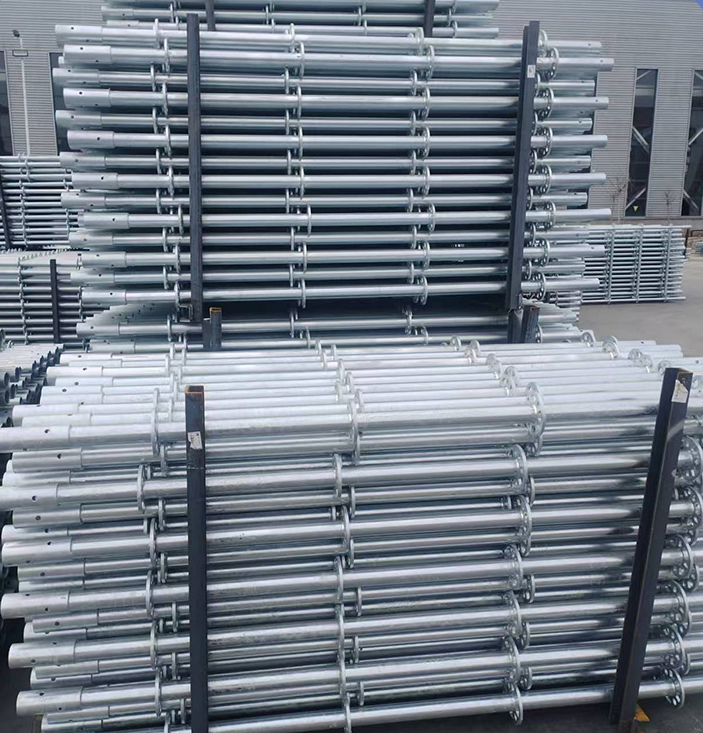

The true genius of the system lies at the rosette node. This central hub unites both horizontal and diagonal forces. You connect multiple ledgers and braces to a single 8-hole rosette. This integration creates an exceptionally rigid node connection.
Node rigidity determines the ultimate load-bearing capacity of the entire bay. A rigid node stops the vertical standards from buckling under heavy top loads. The ledgers hold the standard in alignment horizontally. The braces lock the standard in alignment diagonally. This synchronized force distribution maximizes structural stability. It allows modern modular scaffolds to reach incredible heights safely.
Industry regulatory bodies do not treat lateral bracing as optional. Organizations like OSHA and the NASC strictly govern assembly protocols. For example, NASC SG4 guidelines mandate specific diagonal bracing frequencies. A common industry standard requires bracing every fifth bay along the scaffold facade.
Contractors typically employ two main patterns for these braces. The zigzag (or dog-leg) pattern reverses the brace direction at every lift level. The parallel pattern runs the braces in a continuous direction across the facade. Both patterns effectively transfer lateral loads. Engineering drawings explicitly specify these ratios. You must follow these plans precisely to maintain structural compliance.
Field teams often face intense pressure to complete erections quickly. This rush frequently leads to dangerous assembly errors. Some contractors intentionally under-brace structures. They omit diagonal components to save labor time or reduce material transport. This practice creates severe structural liabilities on the job site.
An under-braced scaffold looks normal to an untrained eye. However, it operates with a drastically reduced safety factor. A sudden wind gust or a heavy material delivery can trigger a catastrophic failure. The vertical standards will buckle because they lack lateral restraint. Transparent discussions about these risks are necessary during daily safety briefings. Cutting corners on bracing always increases collapse probability exponentially.
Standard bracing ratios only apply to basic scaffold configurations. Structural engineers must specify additional bracing for complex site conditions. You should prepare to adapt your design for several common scenarios.
Scaffolding performance depends heavily on the underlying metallurgy. Manufacturers produce components using different steel grades. Standard carbon steel (like Q235) offers basic functionality for low-level structures. However, high-capacity industrial projects require high-tensile steel grades (such as Q345).
High-tensile steel provides exceptional yield strength. It supports substantially heavier loads without suffering permanent deformation. This stronger steel allows manufacturers to produce tubes with slightly thinner walls. This reduces the overall weight of a Ringlock ledger. Lighter components reduce worker fatigue during assembly. They deliver robust load support without adding unnecessary dead weight to the structure.
Scaffolding spends its entire lifecycle exposed to harsh environmental elements. Rain, snow, and coastal salt spray rapidly degrade unprotected steel. Corrosion weakens structural integrity from the inside out. Therefore, surface treatment is a critical quality metric.
The structural magic of the system relies on exact physical fits. You must carefully evaluate the machining precision of the cast heads and wedges. Poorly manufactured components suffer from loose connection tolerances. When a wedge pin does not sit tightly in the rosette, the node loses its rigidity.
Loose connections allow the scaffold to shift and rattle. This micro-movement degrades the overall stability of the bay. It transfers stress incorrectly across the framework. High-quality manufacturers use precision casting and strict quality control. They ensure every ringlock diagonal brace articulating head pivots smoothly but locks down aggressively when hammered tight.
Procurement teams hold the ultimate responsibility for site safety. They must rigorously vet their scaffolding suppliers. You should look for concrete trust signals before issuing a purchase order. ISO 9001 certifications prove the factory follows consistent quality management practices.
Batch traceability is another critical requirement. Every component should carry a stamped identification code. This allows you to track the exact steel heat and production date. Furthermore, insist on third-party structural testing reports. Independent testing laboratories (like SGS or TÜV) verify that the components meet EN 12810 standards. These reports validate the manufacturer's load-bearing claims.
Cheap scaffolding components flood the global market. They tempt buyers with low upfront prices. However, investing in uncertified, poorly engineered parts increases your legal and insurance liabilities. A single scaffold failure costs infinitely more than the savings gained from buying substandard steel.
Precision-engineered components guarantee safety. They slot together perfectly, accelerating assembly time and reducing labor expenses. They also resist wear and weather, lasting through multiple demanding projects. Framing your purchasing decision around upfront safety and legal compliance is the only viable strategy. Reliable parts protect your workers and your company's reputation.
Before finalizing any bulk purchase order, you must establish a clear technical baseline. Implement a strict verification framework for your procurement process. First, request detailed technical load charts for all required components. Verify these charts align with your specific project engineering demands.
Second, demand certified mill test reports (MTRs). These documents prove the chemical composition and yield strength of the raw steel used. Finally, assess the supplier's engineering support capabilities. A top-tier scaffolding manufacturer provides technical guidance. They will help you calculate precise bracing ratios and node capacities. They act as a safety partner, not just a metal vendor.
Ledgers and braces perform distinct, non-interchangeable roles within a scaffold structure. They represent two halves of a complete safety system. The horizontal ledger supports direct vertical weights and shapes the platform. The diagonal brace intercepts dangerous lateral forces and locks the geometry into a stable truss. Achieving safe load support requires their precise synchronization at the central rosette node.
Contractors must respect these engineering realities. Ignoring proper bracing ratios invites catastrophic structural failure. We strongly encourage procurement teams and site managers to act immediately. Audit your current equipment inventory against certified structural drawings. Verify you have adequate bracing stock. If you find discrepancies, consult your technical scaffolding supplier for precise bill-of-materials planning. Protect your teams by ensuring every node remains rigid, and every bay remains stable.
A: No. A scaffold lacking diagonal braces will inevitably experience structural failure under lateral loads. Wind forces, worker movement, and equipment vibrations create horizontal stress. Without braces to form rigid triangular trusses, the square scaffold frames will rack and collapse.
A: It depends heavily on specific engineering designs and local regulations. However, a general rule of thumb requires bracing the exterior faces longitudinally and transversely every fifth bay. Sheeted scaffolds or hoists require significantly higher bracing frequencies to counteract elevated wind and dynamic loads.
A: No. The ledger uses a fixed, 90-degree cast steel head designed for horizontal alignment. The diagonal brace features an articulating (swiveling) head. This specialized swiveling mechanism accommodates various angles, allowing the brace to connect rosettes seamlessly across different structural elevations.
