Ringlock Scaffolding System

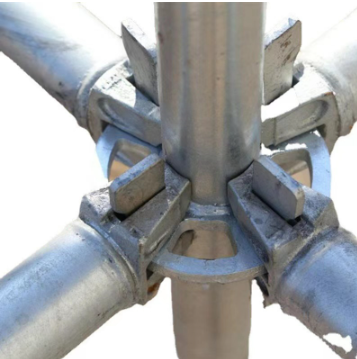

The Ringlock system is globally certified, including EN12810, and is praised for its enhanced performance, all-round safety, and cost efficiency1. It is constructed with a simple lock mechanism that can be made rigid and load-bearing with a single blow of a hammer, making the connection versatile and straightforward.

Features:

(1) No welding
(2) Light weight
(3) Extremely high load-bearing capacity
(4) Extremely low labor intensity
(5) Low wear and tear of fittings
(6) Small storage volume, low storage cost.
(7) Multi-directional design, adaptable to complex building environment
(8) Can be used together with formwork system.
(9) High configurability and unlimited application.
(10) Straight ladder, inclined ladder and walking ladder are optional.
(11) Sturdy structure, safe and reliable
(12)Easy to carry and place.
(13)Easy and quick to install and dismantle, with high effect.
(14)Meet the requirements of environmental protection

Spec-mm	Material	Weight
Φ 48*3.25*200	Q355B	1.80 kg
Φ 48*3.25*300	Q355B	2.73 kg
Φ 48*3.25*350	Q355B	1.80 kg
Φ 48*3.25*350	Q355B	2.87 kg
Φ 48*3.25*500	Q355B	3.45 kg
Φ 48*3.25*1000	Q355B	5.80 kg
Φ 48*3.25*1500	Q355B	8.30 kg
Φ 48*3.25*2000	Q355B	10.6 kg
Φ 48*3.25*2500	Q355B	13.07 kg
Φ 48*3.25*3000	Q355B	15.15 kg

Spec-mm	Material	Weight
Φ48*2.75*250	Q235	1.40 kg
Φ 48*2.75*550	Q235	2.40 kg
Φ 48*2.75*850	Q235	3.40kg
Φ 48*2.75*1150	Q235	4.30 kg
Φ 48*2.75*1450	Q235	5.30 kg
Φ 48*2.75*1750	Q235	6.30 kg
Φ 48*2.75*1950	Q235	6.70 kg

The system also includes a range of accessories such as guardrails, toeboards, ladders, and stairways, ensuring that safety requirements are met and scaffold designs are optimized. The Ringlock scaffolding system is particularly noted for its high load-bearing capacity, stability, and the ability to be reused up to 80% for different applications, which reduces investment costs and increases utilization rates.
