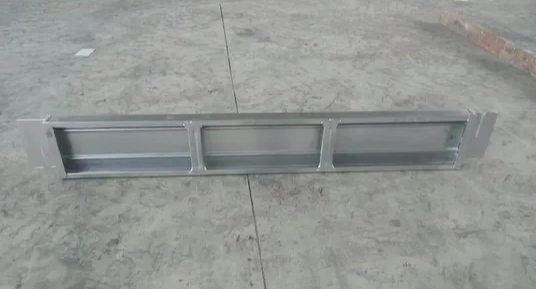

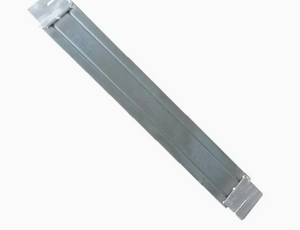

Scaffold Metal Steel Baseboard or Toe Board for Construction

Type
Fixed
Structural Style
Multi-Pole Scaffolding
Framework
Combined Scaffolding
Supporting Mode
Floor Type Scaffolding
Lapping Form
Full Scaffolding
Erection Position
Internal Scaffolding
Scaffolding Part Type
Scaffolding Planks
Construction Properties
Building Scaffold
Surface
Pre-Galvanized, Hot DIP Galvanized
Steel Grade
Q195, Q235
Support Type
Common Support, Ladder Support, Box Support
Hook Size
44mm or 50mm
Height
38mm, 40mm, 45mm, 50mm, 63mm
Thickness
1.0mm, 1.1mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm
Length
0.5-4.0m
Standard
BS1139
MOQ
500PCS
Transport Package
Packed by Steel Strip or in Bulk
Specification
200/210/225/230/240/250/300/420/480/500mm
Trademark
WUFANG
Origin
China
HS Code
73084000
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
The Toe Board, a new type of baseboard (Toe board), is a horizontally mountable unit that can be installed without tools. Nisso Industries previous handrail preset method: With the aim of providing scaffolding that facilitates work in a secure environment, Nisso Industries has promoted the preset handrail, two-level handrail, and baseboard (toe board) as a set for the Fl present handrail unit. The previous baseboard (toe board) installation method involved mounting the baseboard on the anchoring fixtures on the preset handrail support posts or setting the baseboard after mounting the anchoring fixtures with a hammer.


Advantages of Steel Toe Board

1. The Toe Board can be installed and dismantled without tools.

2. The baseboard (toe board) is L-shaped to block gaps between the struts and the panel.

3. The Toe Board is compatible with the revised Industrial Safety and Health Law that came into force on June 1, 2014, and the directives from the Labor Standards Bureau Industrial Safety and Health Department Director.

4. The Toe Board can be installed in the gaps between the framework and footboard.

5. The left and right fixtures fold outwards to allow stacked storage of the main body.

Q195 Pre-galvanized Scaffolding Steel Plank with Hook Steel Catwalk
Width*Height Thickness Length
200 x 40mm 1.0 - 2.0mm 0.5-4.0M
210 x 45mm
225 x 38mm
230 x 63mm
240 x 45mm
250 x 40mm
250 x 50mm
300 x 50mm
400 x 40mm
420 x 45mm
480 x 45mm
500 x 50mm

Production Flow

Scaffold Metal Steel Baseboard or Toe Board for Construction

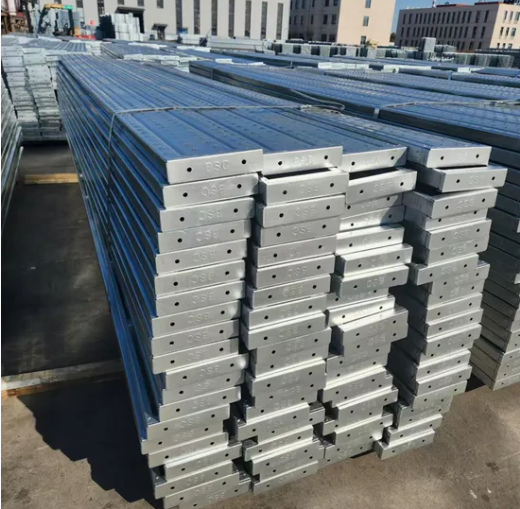

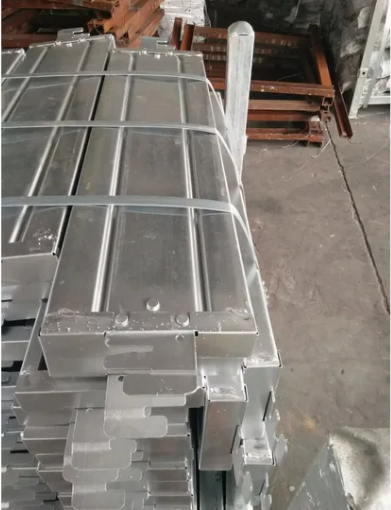

Packaging & Shipping

Scaffold Metal Steel Baseboard or Toe Board for Construction
